Battery Removal/Installation [MZR 2.5]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

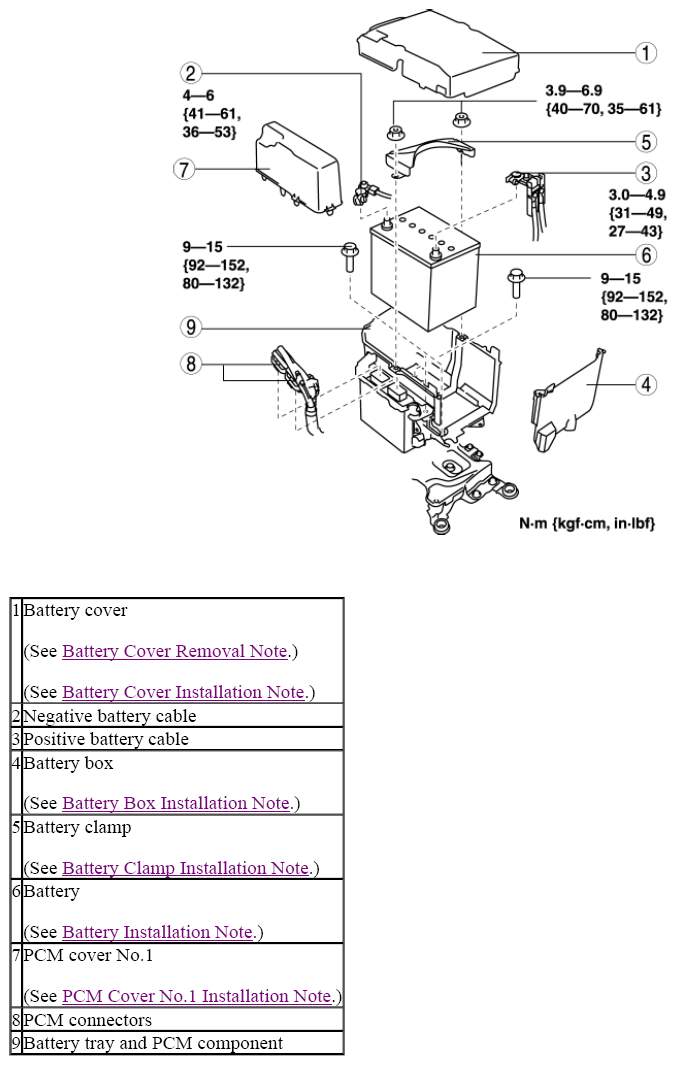

    Fig 1: Exploded View Of Battery With Torque Specification
    G08150250
