Battery Cover Installation Note

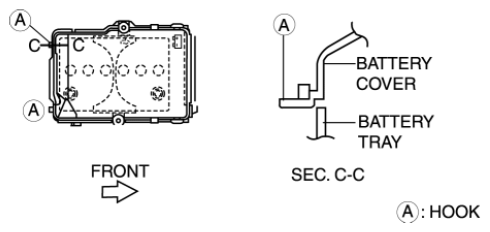

Install with battery cover hooks A aligned with the battery tray holes at two points.

Fig 1: Battery Cover

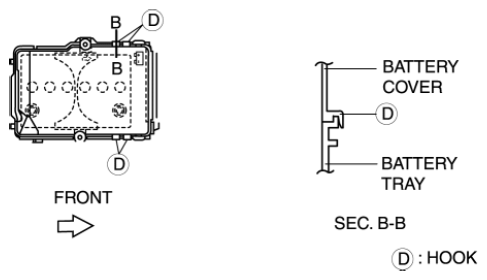

Install with battery cover hooks D aligned with the battery tray flange at four points.

Fig 2: Battery Cover Hooks D With Battery Tray Flange

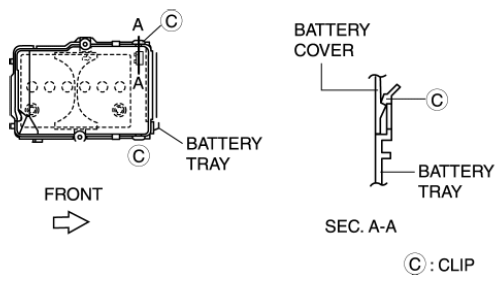

Set the battery cover to battery tray hooks C at two points.

Fig 3: Setting Battery Cover To Battery Tray Hooks C At Points
