Battery Clamp Installation Note
Assemble the battery clamp so that the arrow on it is pointed toward the front of the vehicle.

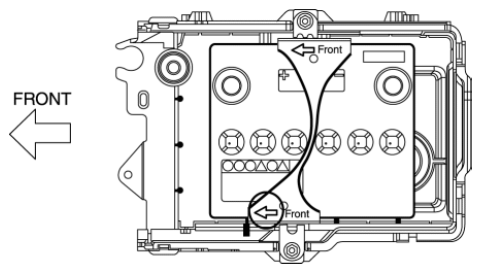

Fig 1: Battery Clamp
