Wheel Hub, Steering Knuckle Component Installation Note

  1. Apply grease (L2Y1 33247) to the wheel bearing inner race and drive shaft contact surface (Area A in figure).

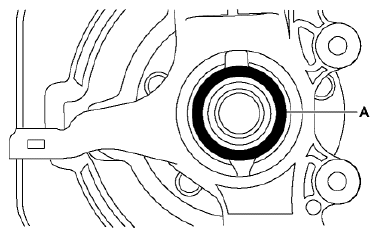

    Fig 1: Identifying Wheel Bearing Inner Race And Drive Shaft Contact Surface Grease Application Area
    G08150480
  2. Install the wheel hub, steering knuckle component.
