Wheel Bearing Excessive Play Inspection

Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.

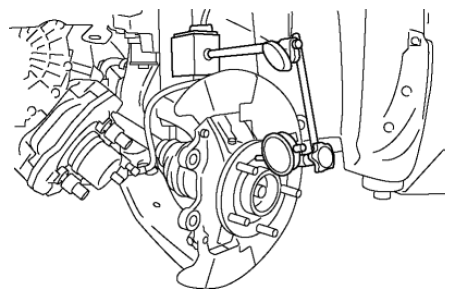

Fig 1: Measuring Wheel Bearing Axial Play
- If it exceeds the maximum specification, replace the wheel hub bearing.
  Maximum front wheel bearing play
- 0.05 mm {0.002 in}
