Without using SST

  1. Grind a section of the bearing inner race until approx. 0.5 mm {0.02 in}  remains.

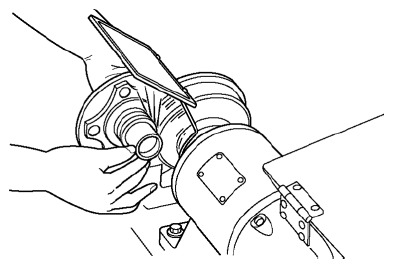

    Fig 1: Removing Bearing Inner Race (Without Using SST)
    G08150483
  2. Remove the bearing inner race using a chisel.
