With using SST

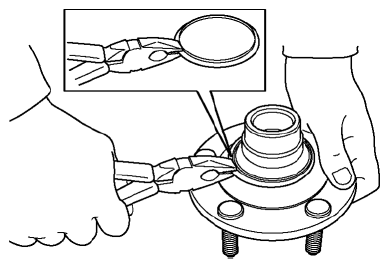

  1. Remove the part as shown in the figure.
    Fig 1: Removing Bearing Inner Race (With Using SST)
    G08150484

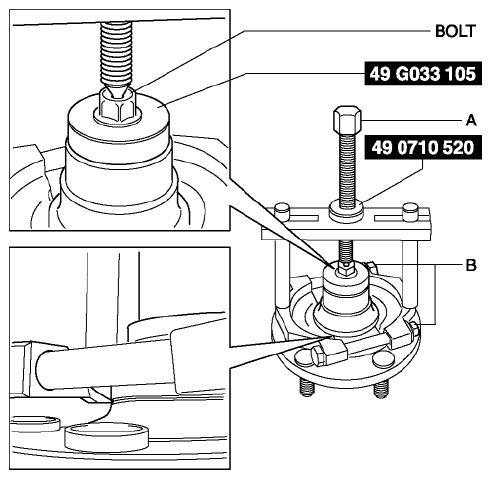

  2. Position the SSTs  and a spare bolt (M10 length 90 mm {3.5 in} or less  ) as shown in the figure.
    Fig 2: Positioning SSTs And Spare Bolt
    G08150485
    CAUTION:
    • When tightening section A, tighten section B securely because the engagement of the SST tab is shallow and it can come off easily.

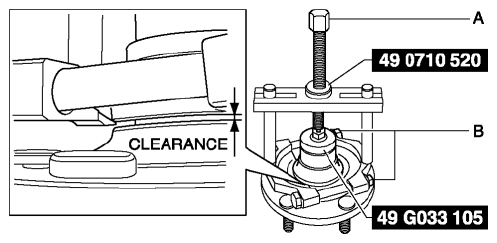

  3. Tighten SST  section A until the clearance between the bearing inner race and wheel hub component is 1-2 mm {0.04-0.07 in}  .
    Fig 3: Checking Clearance Between Bearing Inner Race And Wheel Hub Component
    G08150486
  4. Temporarily loosen SST  section A and position the SST  again.
  5. Tighten SST  section A and remove the bearing inner race.
