Wheel Bearing Installation Note

NOTE:
  • Install the wheel bearing with the ABS encoder (tea color) facing inside of the vehicle.
    Fig 1: Installing Wheel Bearing With ABS Encoder (TEA Color)
    G08150490
  1. Install the new wheel bearing using the SSTs  .

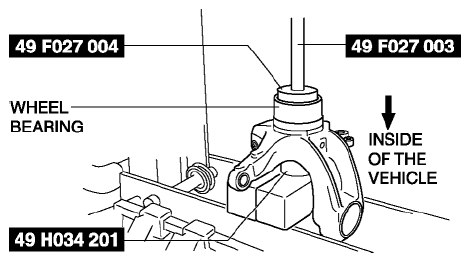

    Fig 2: Installing Wheel Bearing Using SSTs
    G08150491
