Front Wheel Hub Bolt Replacement

  1. Remove the brake caliper component and disc plate.
  2. Remove the wheel hub bolt using the SST  as shown in the figure.

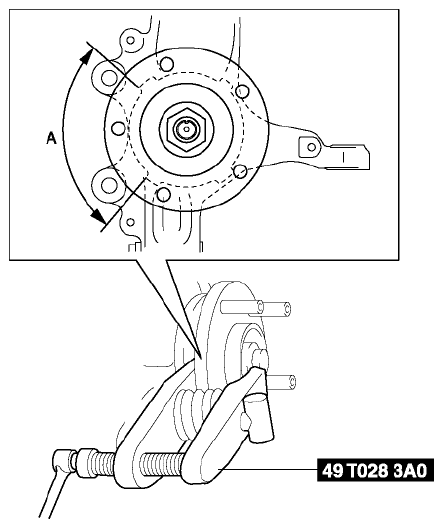

    Fig 1: Removing Front Wheel Hub Bolt Using SST
    G08150493
    NOTE:
    • When removing the wheel hub bolts, perform the work between range A shown in the figure to assure a space for the bolt removal.
  3. Place a new wheel hub bolt in the wheel hub.
  4. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
    Fig 2: Installing Wheel Hub
    G08150494
