| DETECTION CONDITION |
NOTE:
- The low-G sensor and the yaw rate sensor are built into the SAS control module.
- C0061:28, C0061:64
- Out-of-specification signal modulation or lateral-G value is detected from the low-G sensor.
- C0063:28, C0063:64
- Out-of-specification signal modulation or yaw rate value is detected from the yaw rate sensor.
|
| FAIL-SAFE FUNCTION |
- Illuminates the TCS/DSC indicator light.
- Inhibits the TCS (engine control) and DSC controls.
|
| POSSIBLE CAUSE |
- SAS control module malfunction

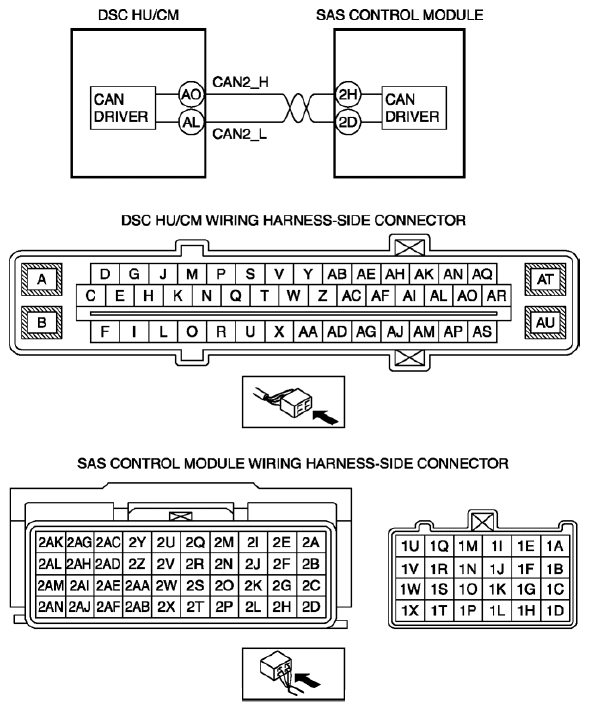

- Open or short circuit in the CAN2_H wiring harness between DSC HU/CM terminal AO and SAS control module terminal 2H
- Open or short circuit in the CAN2_L wiring harness between DSC HU/CM terminal AL and SAS control module terminal 2D
- DSC HU/CM malfunction
- Poor connection at connectors (female terminal)
|
|
|
