Rear Parking Brake Cable Installation Note

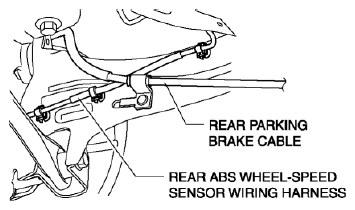

  1. Pass the rear parking brake cable inside the rear ABS wheel-speed sensor wiring harness as shown in the figure.
    Fig 1: Identifying Rear Parking Brake Cable And Rear ABS Wheel-Speed Sensor Wiring Harness
    G08150676
  2. Install the rear parking brake cable.
  3. Verify that the end of the rear parking brake cable outer end is out of the caliper as shown in the figure.
    Fig 2: Identifying Rear Parking Brake Cable, Outer End And Caliper
    G08150677
