Stroke Inspection
- Pump the brake pedal a few times.
- Pull the parking brake lever two to three times.

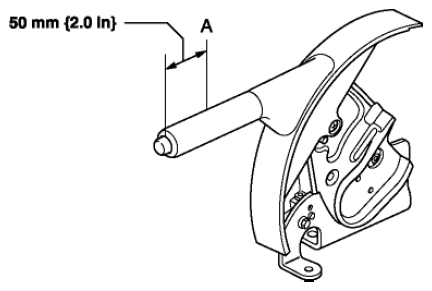

- Inspect the parking brake stroke by slowly pulling at point A 50 mm {2.0 in}
from the end of the parking brake lever with a force of 98 N {10 kgf, 22 lbf}
and counting the number of notches (clicking sound).
- If not within the specification, adjust the parking brake lever.
Parking brake lever stroke when pulled at 98 N {10 kgf, 22 lbf}
- 3-6 notches
- If not within the specification, adjust the parking brake lever.
