Parking Brake Lever Adjustment

  1. Pump the brake pedal a few times.
  2. Remove the service hole cover of the center console.

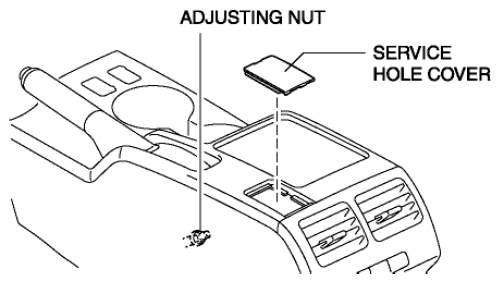

    Fig 1: Identifying Service Hole Cover Of Center Console
    G08150670
  3. Turn the adjusting nut and adjust the parking brake lever.
  4. After adjustment, pull the parking brake lever one notch and verify that the parking brake warning light illuminates.
  5. Verify that the rear brakes do not drag.
