Retaining Clip Installation Note

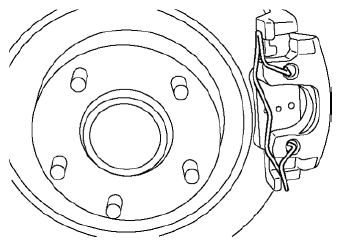

- Temporarily install the retaining clip to the caliper and mounting support as shown in the figure.
- Secure the retaining clip so that part A does not slip off from the caliper while installing part B to the mounting support.
- Verify that the retaining clip is securely installed to the caliper and the mounting support.
