Caliper and Brake Hose Installation Note
- Clean the exposed area of the piston.

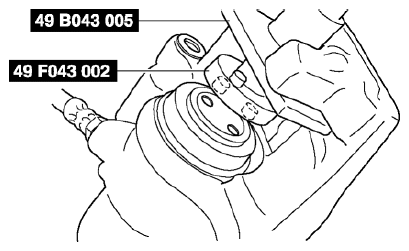

- Install the SST
(49 F043 002) to the SST
(49 B043 005).
- Align the SST
projection to the piston groove.
- Rotate part A on the SST
in the direction of the arrow and secure the SST
to the caliper.
- Rotate the SST
in the direction of the arrow and push the piston completely into the caliper.
NOTE:
- Even with the piston completely pushed in, the top of the piston projects from the dust seal by approximately 2 mm {0.09 in}
.
- Rotate part A on the SST
in the direction of the arrow using the tool and remove the SST
from the caliper.
- Install the caliper and brake hose to the vehicle as a single unit.
