Pre-inspection preparation

Install the SST (49 D043 0A0) to the master cylinder in the orientation shown in the figure.

Fig 1: Installing SST (49 D043 0A0) To Master Cylinder In Orientation
Connect the SSTs , a vacuum gauge, and a pedal force gauge to the master cylinder, and bleed the air from the SSTs and the brake line. (Bleed the air from the SSTs using air bleed valve A.)

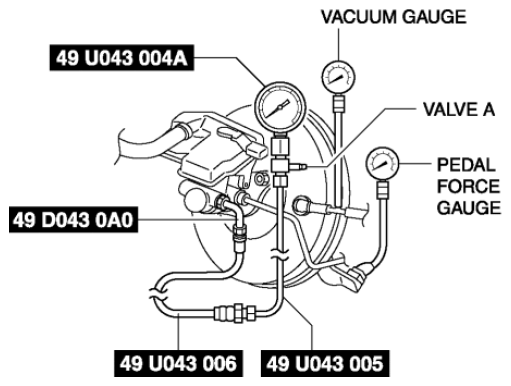

Fig 2: Connecting SSTs, Vacuum Gauge And Pedal Force Gauge To Master Cylinder And Bleed Air From SSTs And Brake Line
