Master Cylinder Removal/Installation: Notes

1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See BRAKE FLUID AIR BLEEDING .)

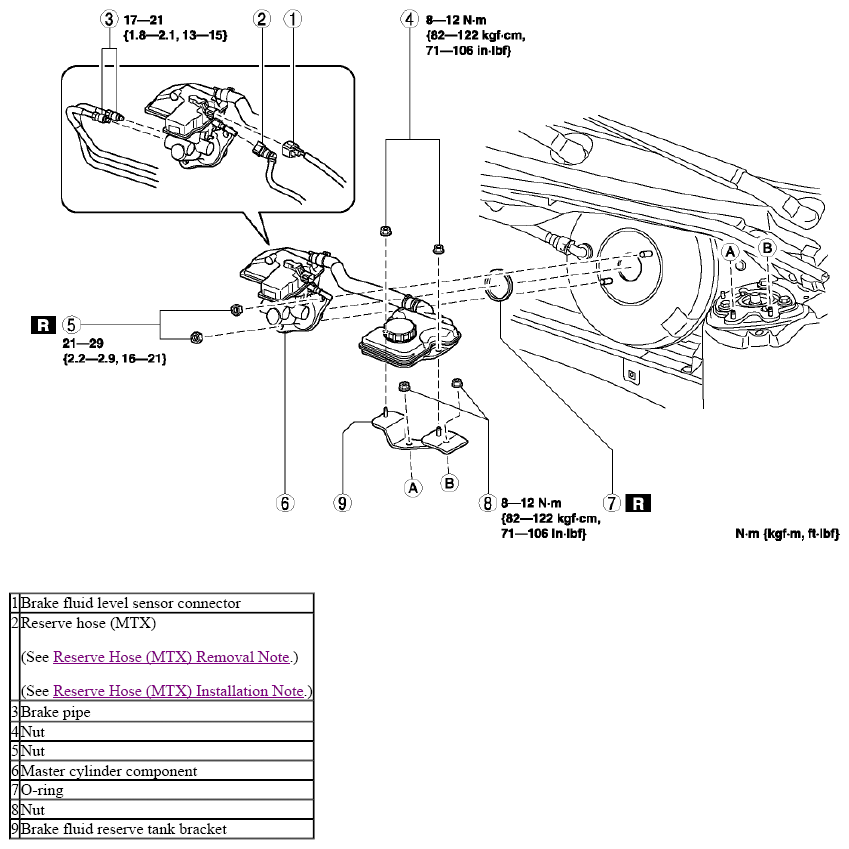

Fig 1: Exploded View Of Master Cylinder With Torque Specification (1 Of 2)

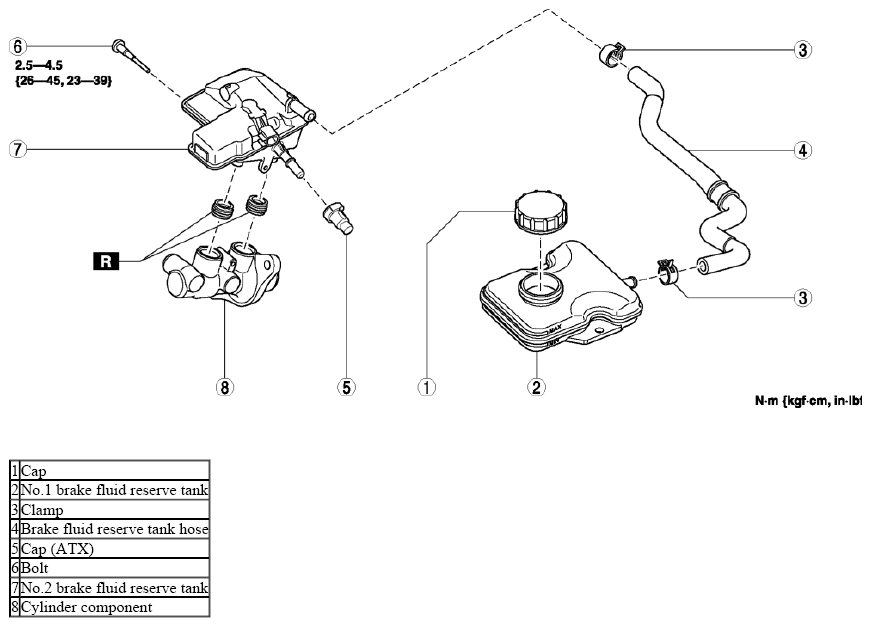

Fig 2: Exploded View Of Master Cylinder With Torque Specification (2 Of 2)
