Front Brake (Disc) Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See BRAKE FLUID AIR BLEEDING .)
4. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

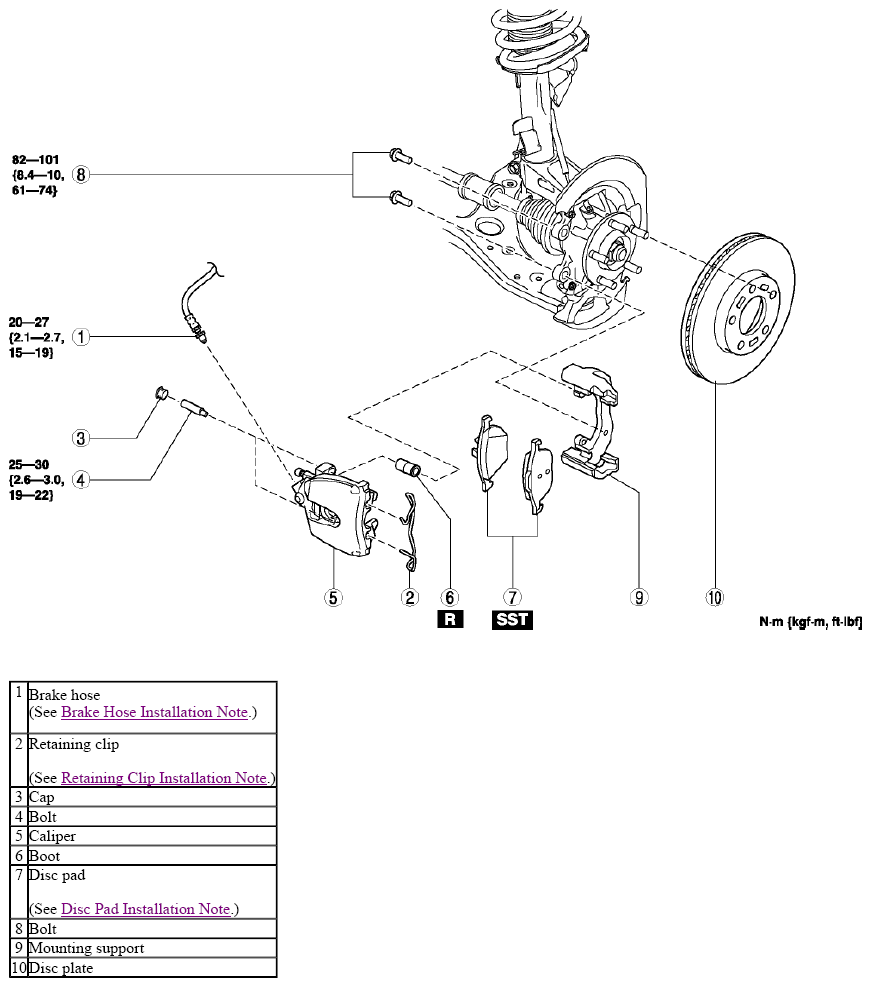

Fig 1: Front Disc Brake Components With Torque Specification
