Lateral runout inspection
- To secure the brake rotor and the hub, insert the washer (thickness 10 mm {0.39 in}
, inner diameter more than 12 mm {0.47 in}
) between each hub bolt and the hub nut, then tighten all the hub nuts.NOTE:
- The component parts of the SST (49 B017 001 or 49 G019 003) can be used as a suitable washer.

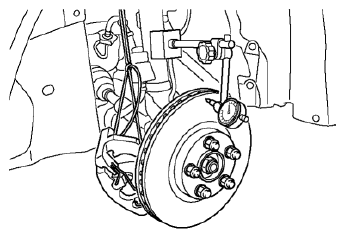

- After tightening all the hub nuts to the same torque, put the dial gauge on the friction surface of the brake rotor 10 mm {0.39 in} from the brake rotor edge.
- Rotate the brake rotor one time and measure the runout.
Front brake rotor runout limit
- 0.04 mm {0.002 in}
