Disc Pad (Rear) Replacement: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, pump the brake pedal a few times and inspect the following:
    • Parking brake lever stroke
    • Brake drag

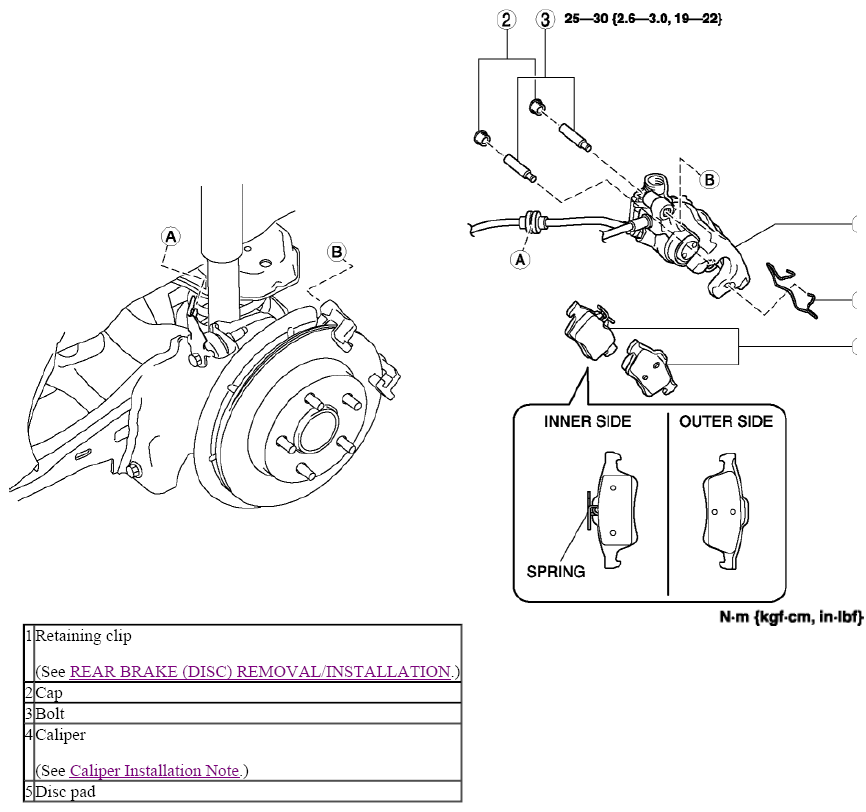

Fig 1: Exploded View Of Rear Disc Pad With Torque Specification
G08150654
