Caliper Installation Note

Clean the exposed area of the piston.
Install the SST (49 F043 002) to the SST (49 B043 005).

Fig 1: Installing SST (49 F043 002) To SST (49 B043 005)
Align the SST projection to the piston groove.

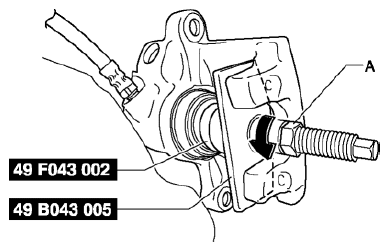

Rotate part A on the SST in the direction of the arrow and secure the SST to the caliper.

Fig 2: Rotating Part A On SST

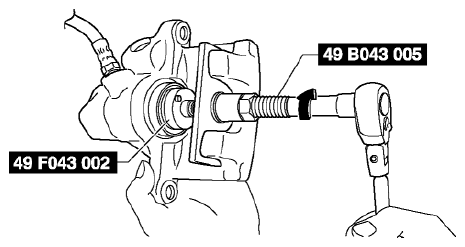

Rotate the SST in the direction of the arrow and push the piston completely into the caliper.

Fig 3: Rotating SST
NOTE:
- Even with the piston completely pushed in, the top of the piston projects from the dust seal by approximately 2 mm {0.09 in} .
Rotate part A on the SST in the direction of the arrow using the tool and remove the SST from the caliper.

Fig 4: Rotating Part A On SST
Install the caliper to the vehicle.
