Disc Pad (Front) Replacement

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

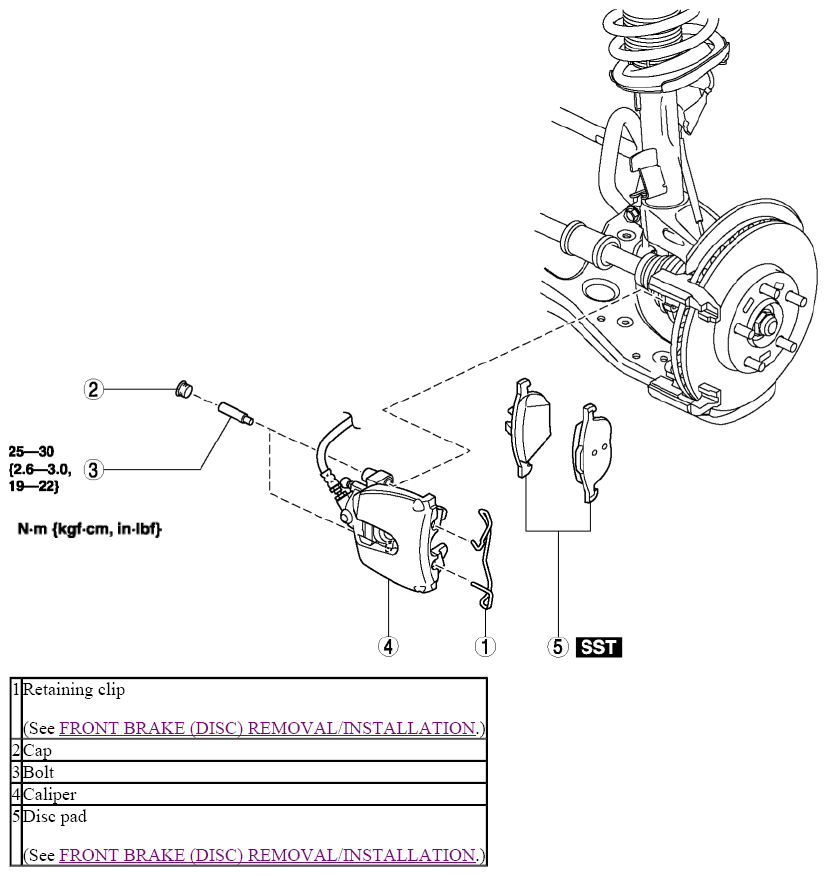

Fig 1: Exploded View Of Brake Caliper Assembly With Torque Specification
G08150632
