Caliper (Rear) Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

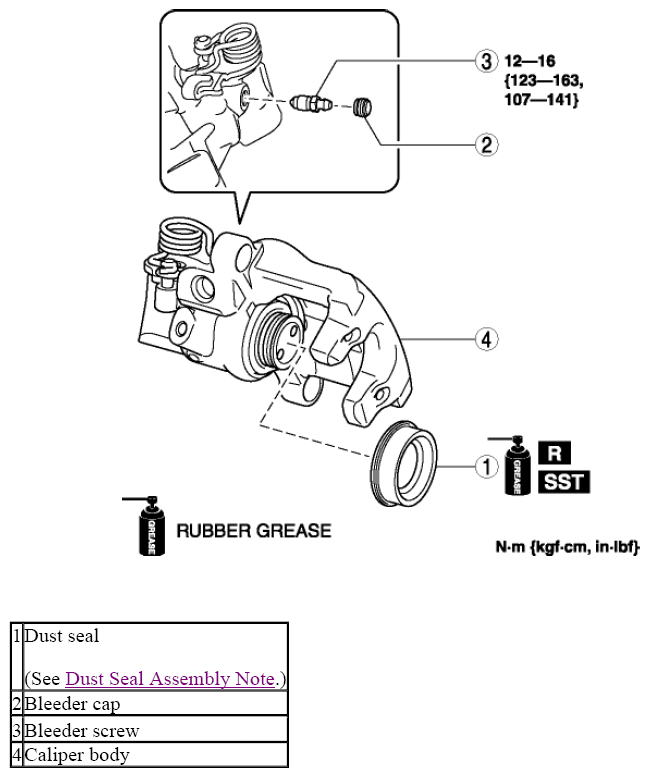

    Fig 1: Rear Caliper Components With Torque Specification
    G08150659
  2. Assemble in the reverse order of disassembly.
