Caliper (Front) Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

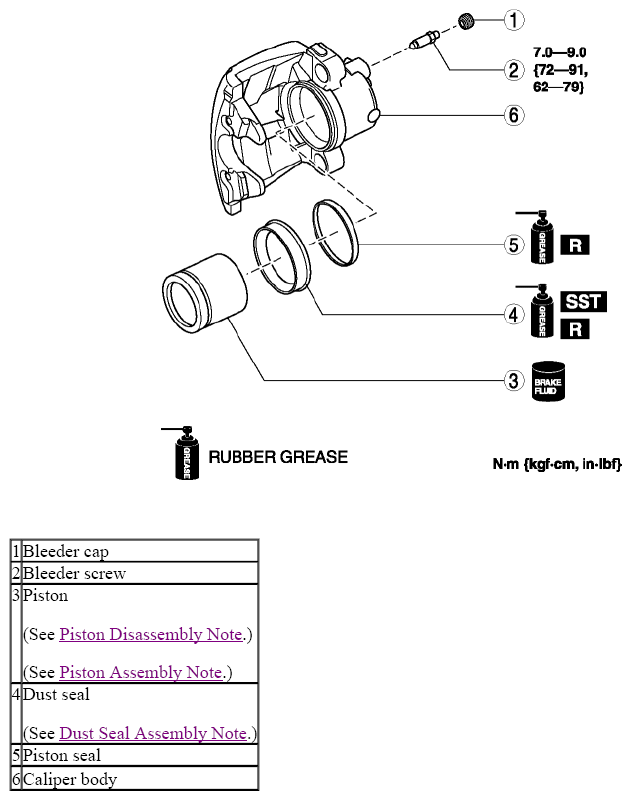

    Fig 1: Front Brake Caliper Components With Torque Specification
    G08150633
  2. Assemble in the reverse order of disassembly.
