Brake Switch Inspection

CAUTION:
  • Inspect the brake switch with it installed to the brake pedal, otherwise the brake switch may not operate normally. If the brake switch is removed from the brake pedal, replace the brake switch with a new one.
  1. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  6. Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
  7. Remove the shift lever knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
  8. Remove the selector lever knob. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  9. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  10. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  11. Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  12. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  13. Remove the driver-side front heat duct. (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  14. Disconnect the brake switch connector.
  15. Verify that the continuity is as indicated in the table.
    Fig 1: Identifying Brake Switch Connector Terminals
    G08150609

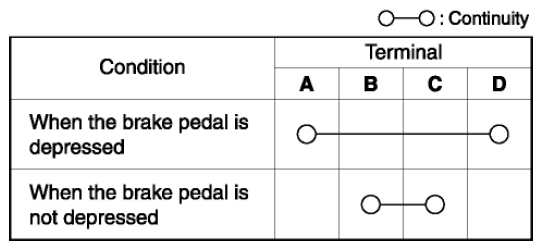

    Fig 2: Brake Switch Connector Terminals Continuity Chart
    G08150610
