Pedal Height Inspection

Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.

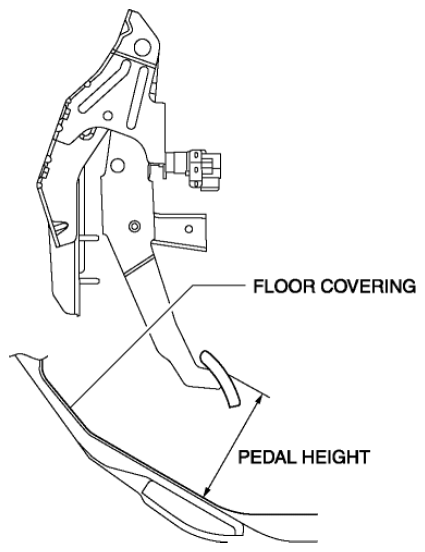

Fig 1: Checking Brake Pedal Height
- If not within the specification, replace the brake pedal.
  Brake pedal height (reference value)
- 126 mm {4.96 in}
