Brake Hose (Front) Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See BRAKE FLUID AIR BLEEDING .)

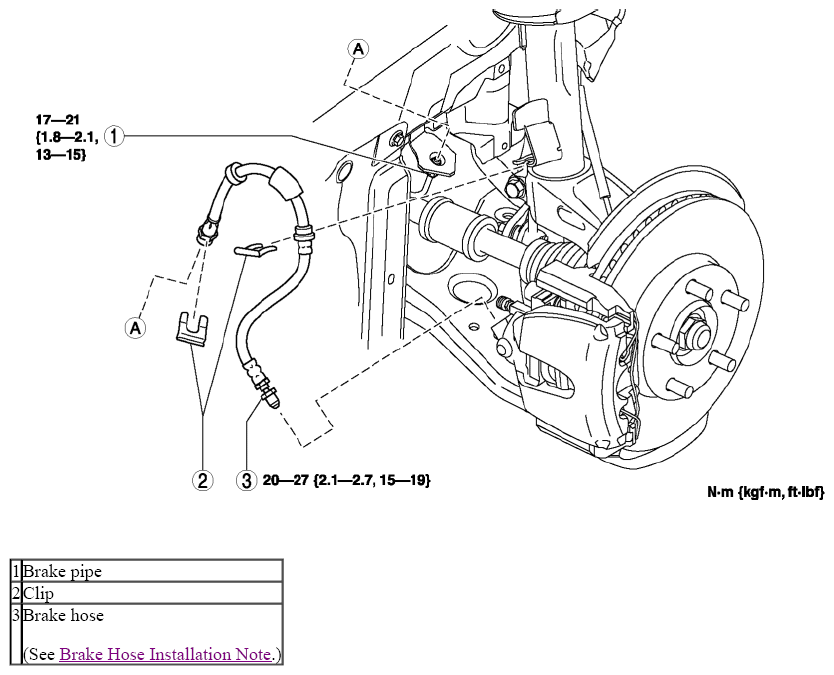

Fig 1: Front Brake Hose Replacement Components With Torque Specifications
G08150639
