Diagnostic Procedure

Noise type	Time of occurrence	Possible cause	Location of noise	Action
Clanking noise	Door glass begins to move	Insufficiently tightened installation screw between the door glass and carrier plate.	Between door glass lower edge and carrier plate.	Securely tighten the installation screw.
Groaning noise (Sound increases due to use)	While door glass is operating	Vibration caused by wear on the resin part from cable twisting due to use of the power window regulator. NOTE: Noise does not occur if a roller is equipped to power window regulator resin part.	Power window regulator	Replace the power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
Whining noise		Gear inside power window motor is deformed due to use.	Gear in power window motor	Replace the power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
Clicking noise (Periodic noise)		Gear inside power window motor is deformed due to use.	Gear in power window motor

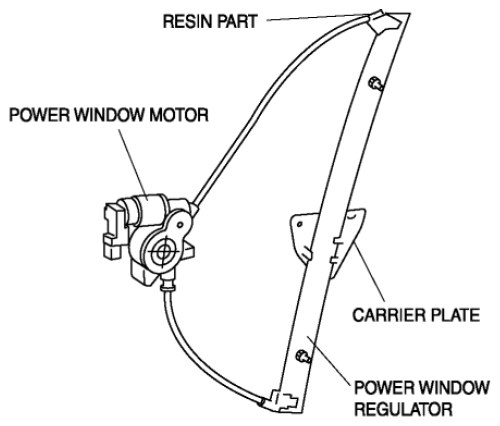

Fig 1: Identifying Power Window Motor, Regulator, Carrier Plate And Resin Part
