Third-Row Seat Back Trim Removal/Installation

Open the cargo net hook cover, remove the bolt.

Fig 1: Opening Cargo Net Hook Cover
Remove the cargo net hook and cargo net hook cover.

Fig 2: Removing Cargo Net Hook And Cargo Net Hook Cover

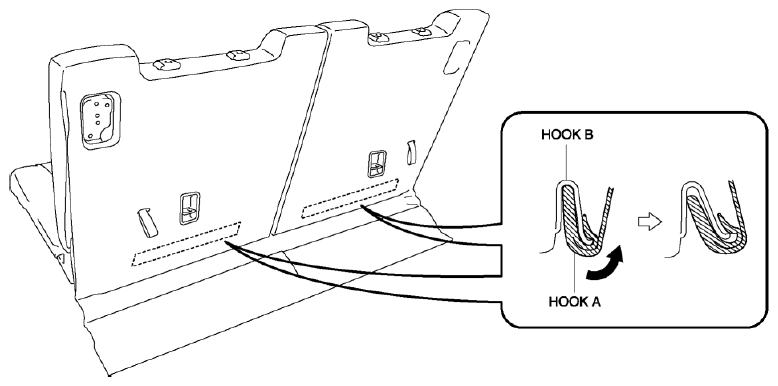

Slide the hook A shown in the figure to detach it from the hook B.

Fig 3: Sliding Hooks
Remove the child-restraint seat anchor covers.

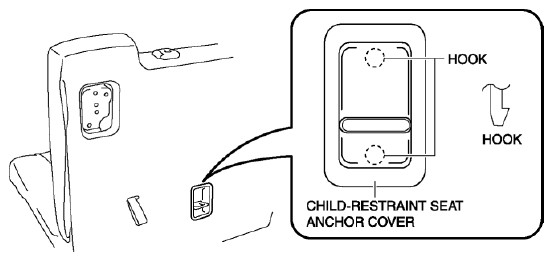

Fig 4: Removing Child-Restraint Seat Anchor Covers
Remove the rings C in the figure, remove the third-row seat back board.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.

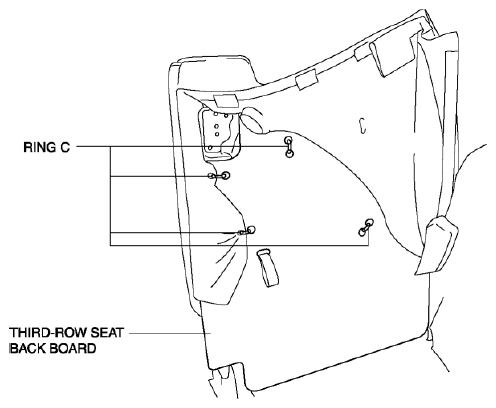

Fig 5: Identifying Third-Row Seat Back Board And Rings C
Remove the screws.

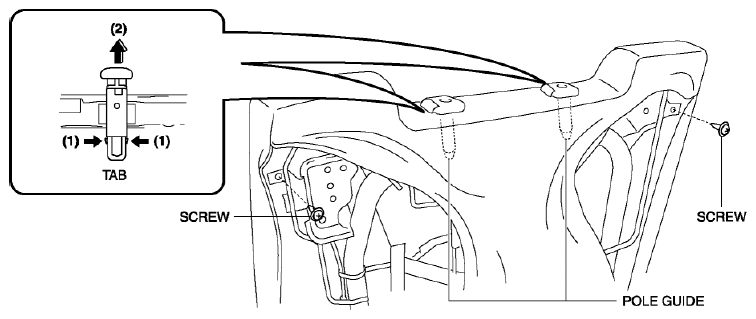

Fig 6: Releasing Pole Guide Tabs
Release the pole guide tabs in the direction of arrow (1) shown in the figure, then pull the pole guide out in the direction of arrow (2).

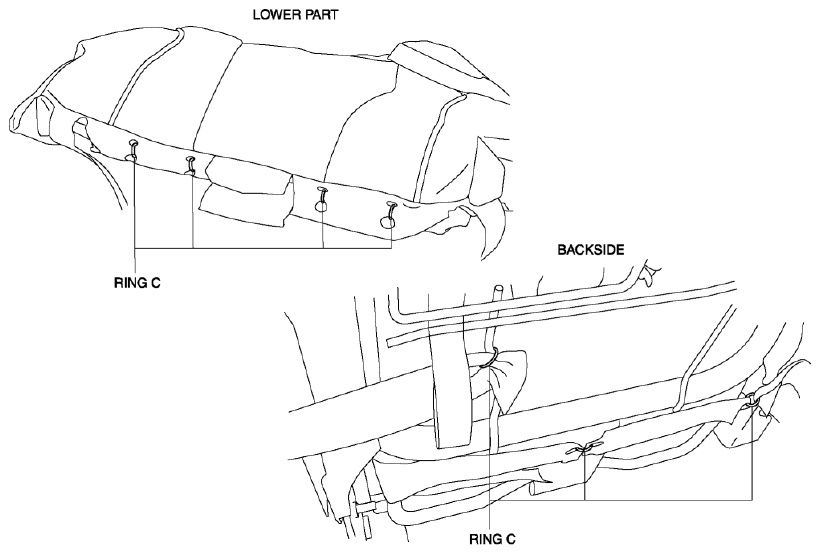

Remove the rings C from the third-row seat back lower part and backside, then remove the third-row seat back trim and the third-row seat back pad from the third-row seat back frame.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 7: Releasing Pole Guide Tabs

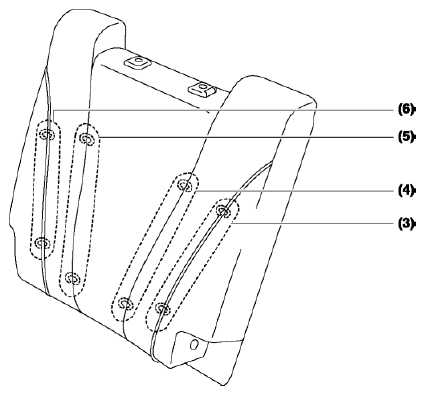

Remove the rings C in the order of (3), (4), (5), (6), then remove the third-row seat back trim from the third-row seat back pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Fig 8: Identifying Second-Row Seat Cushion Pad And Rings C
Install in the reverse order of removal.
