Rear Console Side

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
  2. Raise the seat cushion.

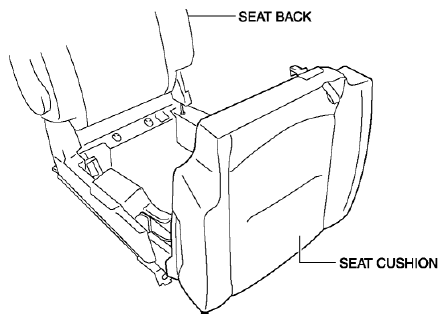

    Fig 1: Identifying Seat Back And Seat Cushion
    G08152951
  3. Detach the tab, the clip, the pin and the hook, remove the second-row seat side cover.

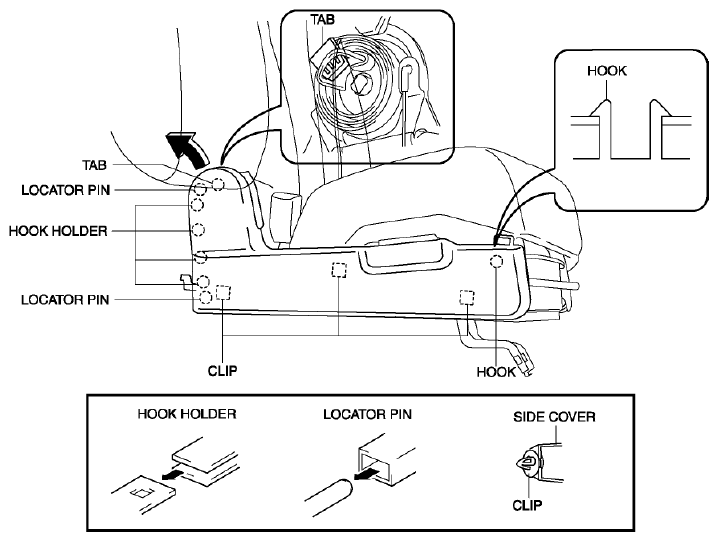

    Fig 2: Removing Second-Row Seat Side Cover
    G08152952
  4. Install in the reverse order of removal.
