Second-Row Seat Cushion Trim Removal/Installation

Remove the second-row seat cushion. (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
Remove the second-row seat cushion cover.

Fig 1: Removing Second-Row Seat Cushion Cover
Remove the cover and the rings C, then remove the second-row seat cushion trim and the second-row seat cushion pad from the second-row seat cushion frame.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.

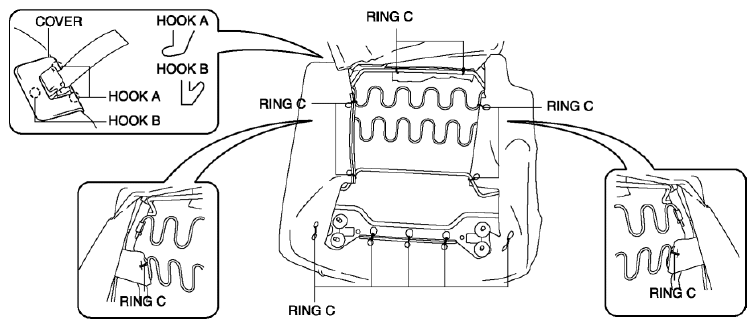

Fig 2: Removing Cover And Rings C
Remove the rings C in the order of (1), (2), (3), (4), then remove the second-row seat cushion trim from the second-row seat cushion pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.

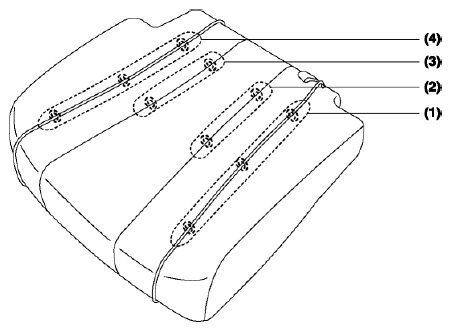

Fig 3: Identifying Second-Row Seat Cushion Pad And Rings C
Install in the reverse order of removal.
