Second-Row Seat Cushion Removal/Installation

  1. Raise the second-row seat cushion.

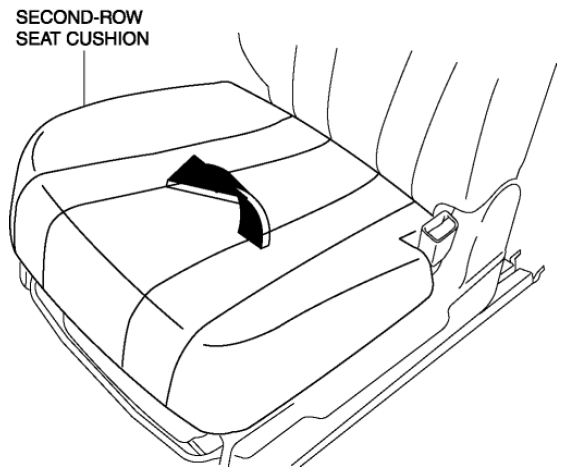

    Fig 1: Raising Second-Row Seat Cushion
    G08152953
  2. Remove the screw, then remove the hinge cover.

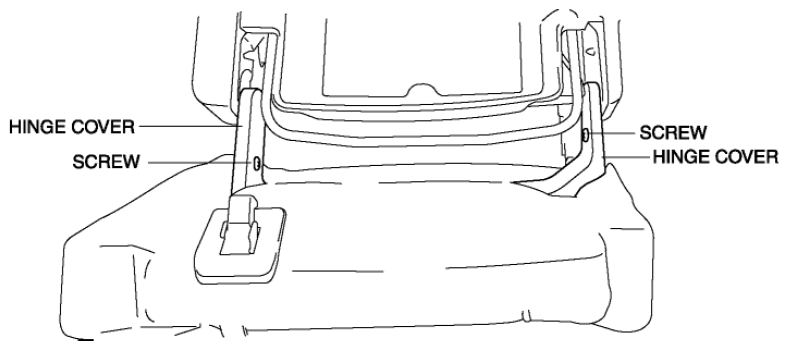

    Fig 2: Identifying Hinge Cover And Screw
    G08152954
  3. Remove the bolts, then remove the second-row seat cushion.

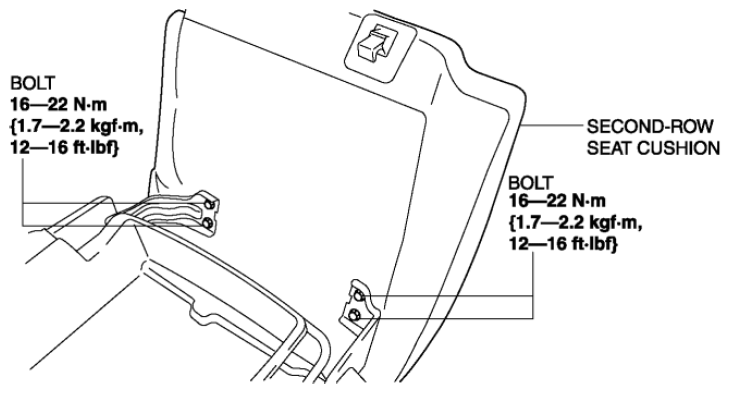

    Fig 3: Second-Row Seat Cushion And Bolts With Torque Specifications
    G08152955
  4. Install in the reverse order of removal.
