Second-Row Seat Back Trim Removal/Installation

Remove the headrest.
Remove the second-row seat armrest.

Fig 1: Second-Row Seat Armrest Bolt And Fastener With Torque Specifications
Slide the hook A shown in the figure to detach it from the hook B.

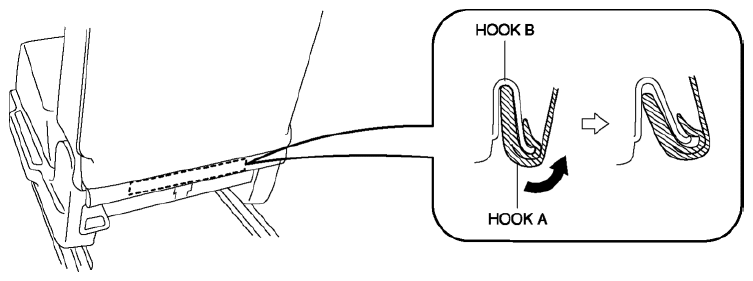

Fig 2: Sliding Second-Row Seat Armrest To Hooks
Raise the seat cushion.

Fig 3: Identifying Seat Back And Seat Cushion
Fold the seat back forward.
Remove the second-row seat back board.

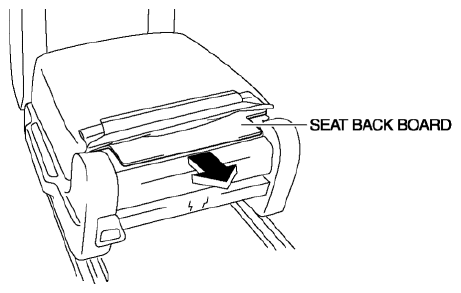

Fig 4: Removing Second-Row Seat Back Board
Raise the seat back.
Release the pole guide tabs in the direction of arrow (1) shown in the figure, then pull the pole guide out in the direction of arrow (2).

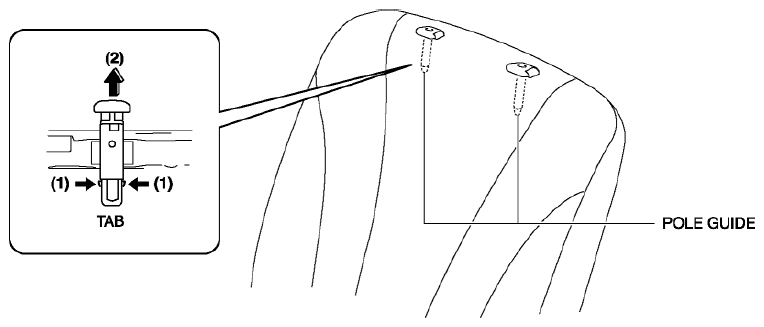

Fig 5: Releasing Pole Guide Tabs
Remove the second-row seat back trim and the second-row seat pad from the second-row seat back frame.
Remove the rings C in the order of (3), (4), (5), (6), then remove the second-row seat back trim from the second-row seat back pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.

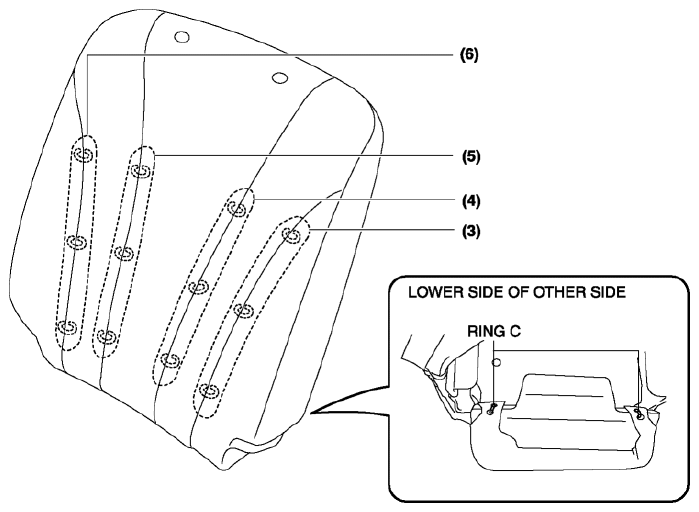

Fig 6: Identifying Second-Row Seat Cushion Pad And Rings C
Install in the reverse order of removal.
