Seat Cushion
- Switch the ignition OFF (LOCK).
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect the negative battery cable and wait 1 min or more .
- Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
- Remove the front seat belt anchor cover. (passenger-side only) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Remove the front seat belt lower anchor installation bolt. (passenger-side only) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)

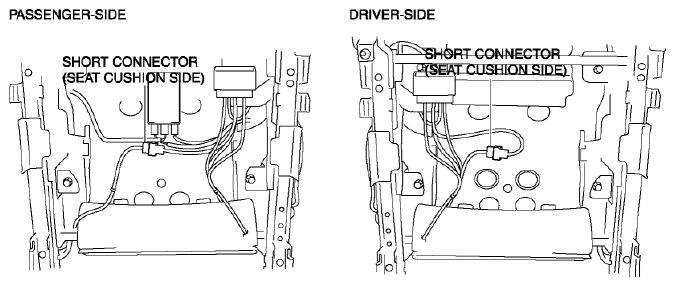

- Disconnect the short connector.
- Verify that the continuity between the short connector terminals is as indicated in the table.
- If not as indicated in the table, replace the seat warmer unit. (See SEAT WARMER UNIT INSTALLATION .)
- Apply battery positive voltage to short connector terminal 2A (wiring harness-side) and terminal 2B (wiring harness-side) to ground.

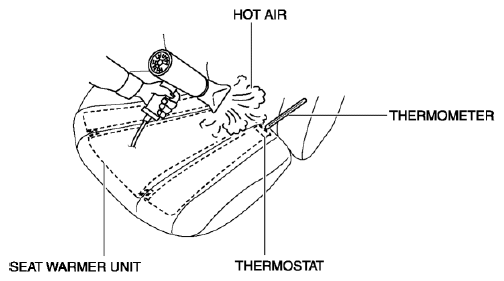

- While inspecting for voltage of the short connector, use a dryer to warm the thermostat of the seat warmer unit on seat cushion.
- Verify that the voltage at the short connector terminals is as indicated in the table.
- If not as indicated in the table, replace the seat warmer unit. (See SEAT WARMER UNIT INSTALLATION .)
| Terminal | Signal name | Connected to | Measurement conditions | Voltage (V) | Inspection item(s) |
|---|---|---|---|---|---|
| 2A | Power supply | Thermostat | More than approx. 43.1 °C {110 °F} | B+ |
|
| Less than approx. 43.0 °C {109 °F} | 1.0 or less | ||||
| 2B | GND | Body ground | Under any condition | 1.0 or less | Body ground |
