Seat Back

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Disconnect the negative battery cable and wait 1 min or more  .
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  5. Remove the front seat belt anchor cover. (passenger-side only) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  6. Remove the front seat belt lower anchor installation bolt. (passenger-side only) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  7. Disconnect the seat warmer connector and short connector.

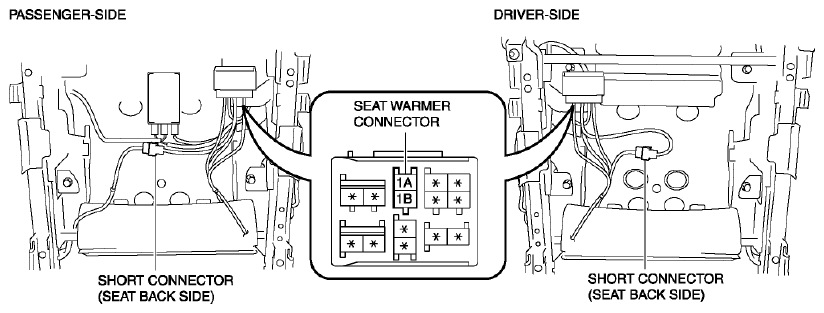

    Fig 1: Seat Warmer Connector And Short Connector
    G08153014
  8. Verify that the continuity between the seat warmer connector and short connector is as indicated in the table.
    Fig 2: Identifying Seat Warmer Connector And Short Connector Terminals
    G08153015
    • If not as indicated in the table, replace the seat warmer unit (seat back). (See SEAT WARMER UNIT INSTALLATION .)
      Fig 3: Seat Warmer Unit Continuity Chart (2A And 1A)
      G08153016
    • If not as indicated in the table, replace the seat warmer unit (seat back). (See SEAT WARMER UNIT INSTALLATION .)
      Fig 4: Seat Warmer Unit Continuity Chart (2C And 1A)
      G08153017
    • If not as indicated in the table, replace the seat warmer unit (seat back). (See SEAT WARMER UNIT INSTALLATION .)
      Fig 5: Seat Warmer Unit Continuity Chart (2B And 1B)
      G08153018
