Seat Warmer Switch Removal/Installation

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Disconnect the negative battery cable and wait 1 min or more  .
  4. Disconnect the negative battery cable.
  5. Remove the center console box. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
  6. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

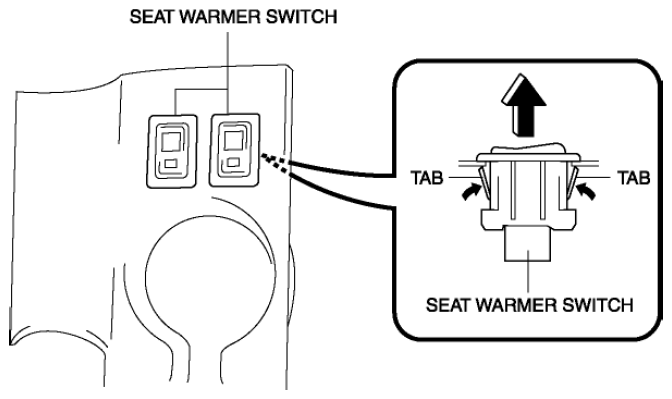

    Fig 1: Tabs Of Seat Warmer Switch
    G08153002
  7. Remove the seat warmer switch.
  8. Install in the reverse order of removal.
