Door Side

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Disconnect the negative battery cable and wait 1 min or more  .
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  5. Remove the front seat side cover No.2. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
  6. Remove the screw.

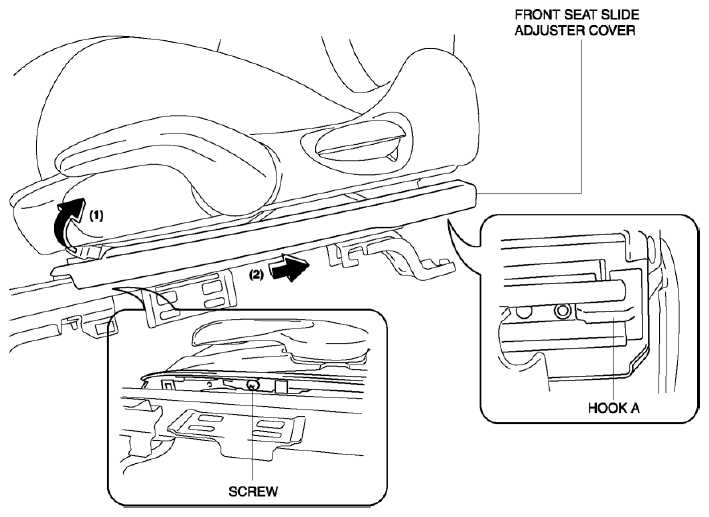

    Fig 1: Pulling Front Seat Slide Adjuster Cover And Hook A
    G08153000
  7. Detach the hook in the upward direction of arrow (1).
  8. Pulling the front seat slide adjuster cover and detach the hook A in the direction of arrow (2), then remove it.
  9. Install in the reverse order of removal.
