Front Seat Side Cover Removal/Installation: Driver-side

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Disconnect the negative battery cable and wait 1 min or more  .
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  5. Detach the tab and the hook, remove the front seat side cover No.2.

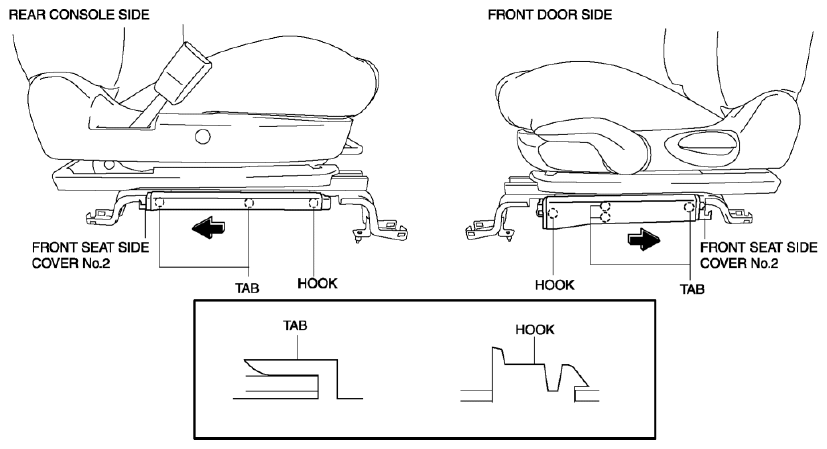

    Fig 1: Front Seat Side Cover No.2, Tab And Hook
    G08152912
  6. Insert a tape-wrapped flathead screwdriver into notch indicated in the figure, and remove the lift lever outer cover while pushing in the direction of arrow (1).

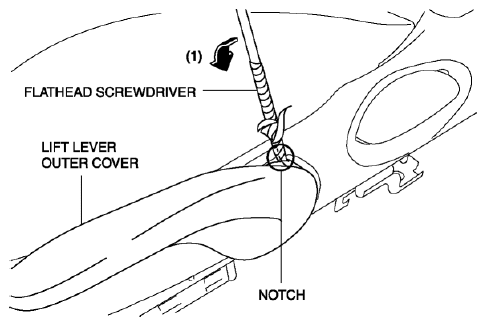

    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Notch
    G08152913
  7. Detach the tab A and the hook B while pulling the lift lever outer cover in the order of (2), (3) and remove it.

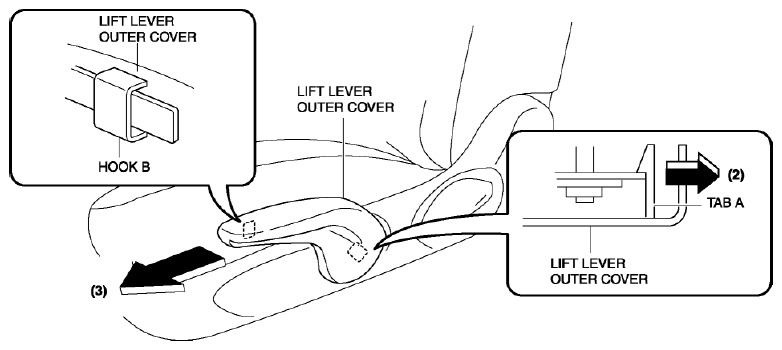

    Fig 3: Pulling Lift Lever Outer Cover
    G08152914
  8. Remove the snap ring.

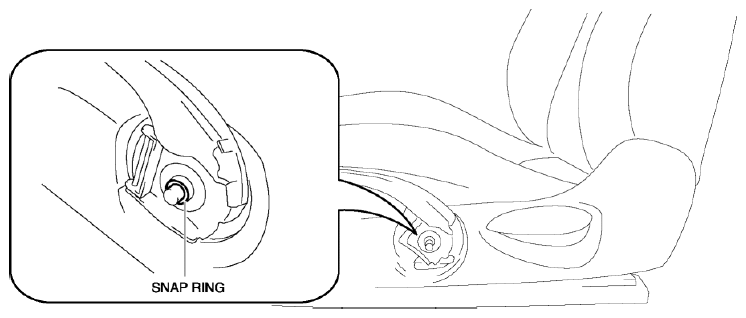

    Fig 4: Snap Ring
    G08152915
  9. Operate the lift lever in the direction of arrow (4) shown in the figure.

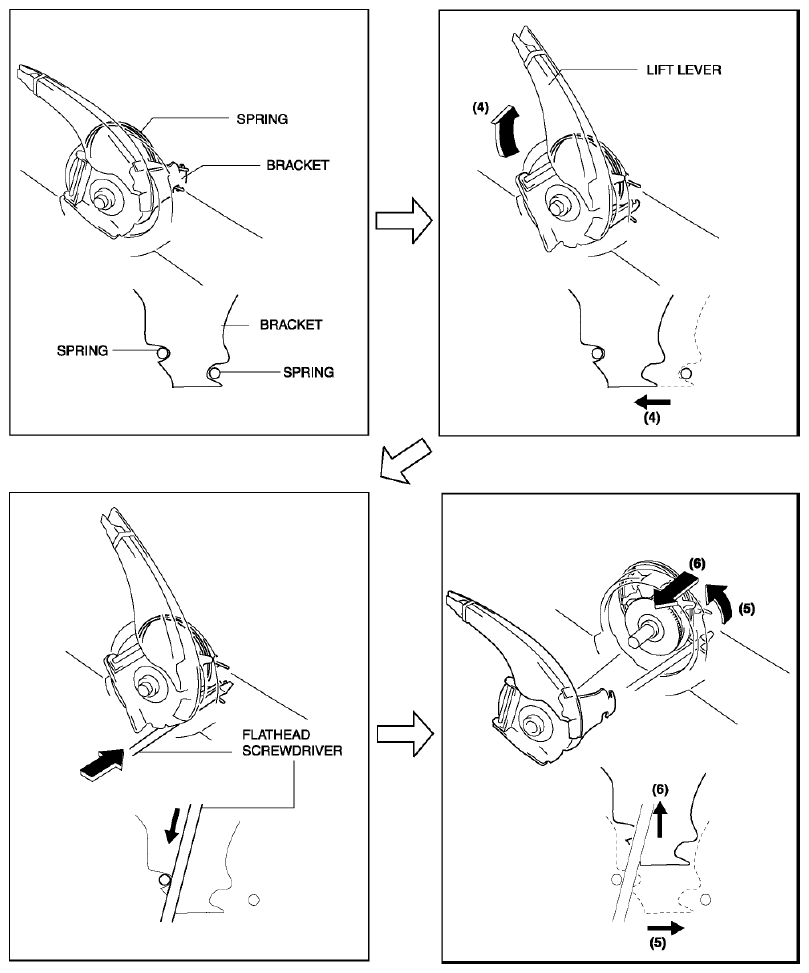

    Fig 5: Operating Lift Lever
    G08152916
  10. Using a flathead screwdriver, hold the spring.
  11. Return the lift lever a bit to pull it up in the order of (5), (6) shown in the figure.
  12. After operating the recliner lever in the upward direction (7), cut the area indicated in the figure, then remove the recliner lever in the direction of arrow (8).

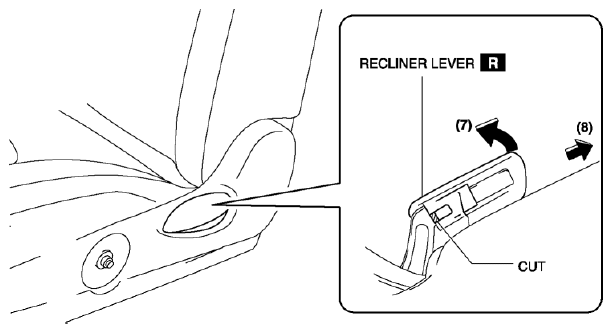

    Fig 6: Operating Recliner Lever
    G08152917
    CAUTION:
    • The seat back folds forward when the recliner lever is operated. Be careful when operating the recliner lever.
  13. Remove the screw.
    Fig 7: Identifying Recliner Lever And Screw
    G08152918
  14. Push the front seat side cover to the rear, remove the hook shown in the figure.

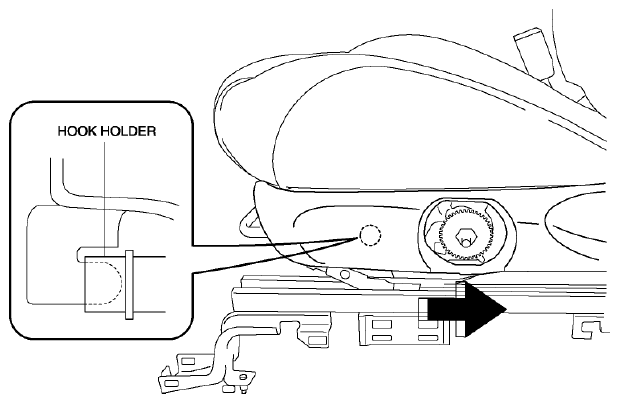

    Fig 8: Removing Hook
    G08152919
  15. Detach the pin and the hook while pulling rear part of the front seat side cover toward.

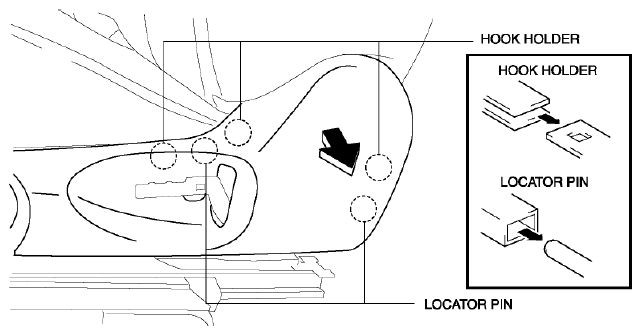

    Fig 9: Detaching Pin And Hook
    G08152920
  16. Detach the tab and the hook while pulling in the direction of arrow (9), (10) shown in the figure.

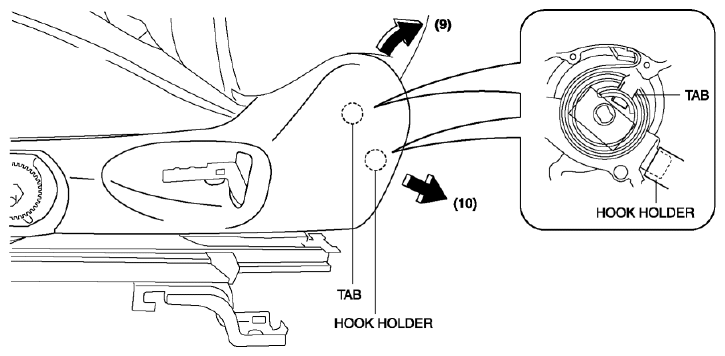

    Fig 10: Detaching Tab And Hook
    G08152921

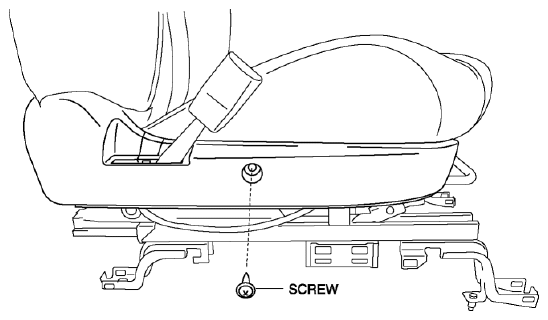

  17. Remove the screw.

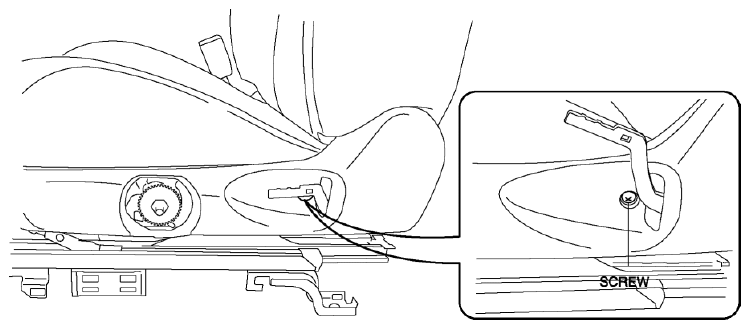

    Fig 11: Identifying Recliner Lever And Screw
    G08152922
  18. Remove the cover.

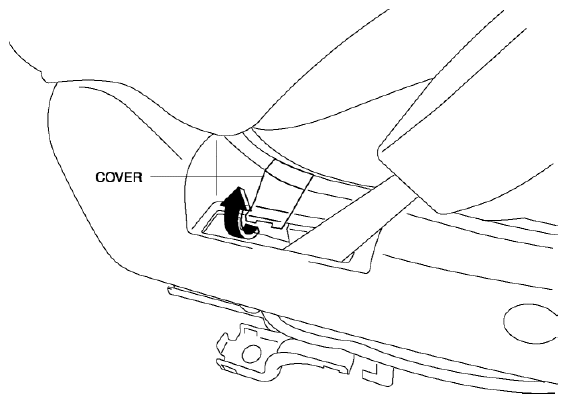

    Fig 12: Removing Cover
    G08152923
  19. Detach the hook while pulling in the direction of arrow.
    Fig 13: Detaching Hook
    G08152924
  20. Detach the pin and the hook while pulling rear part of the front seat side cover toward.

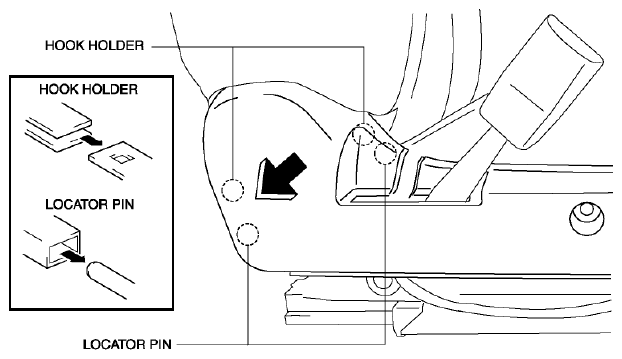

    Fig 14: Detaching Pin And Hook
    G08152925

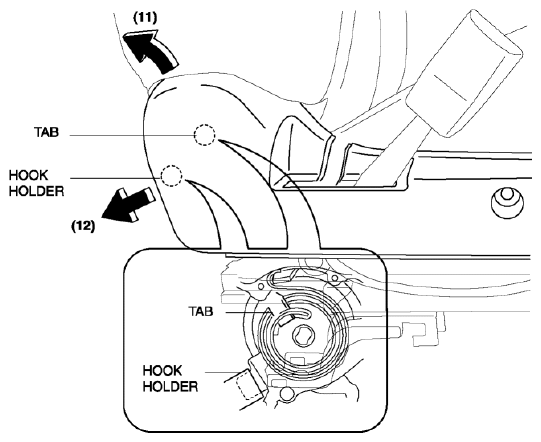

  21. Detach the tab and the hook while pulling in the direction of arrow (11), (12) shown in the figure.
    Fig 15: Detaching Tab And Hook
    G08152926
  22. Install in the reverse order of removal.
