Side Wall Removal/Installation: Passenger-side

  1. Pull out the side wall in the direction shown in the direction of the arrow (1) shown in the figure, then remove the clips A and hook B.

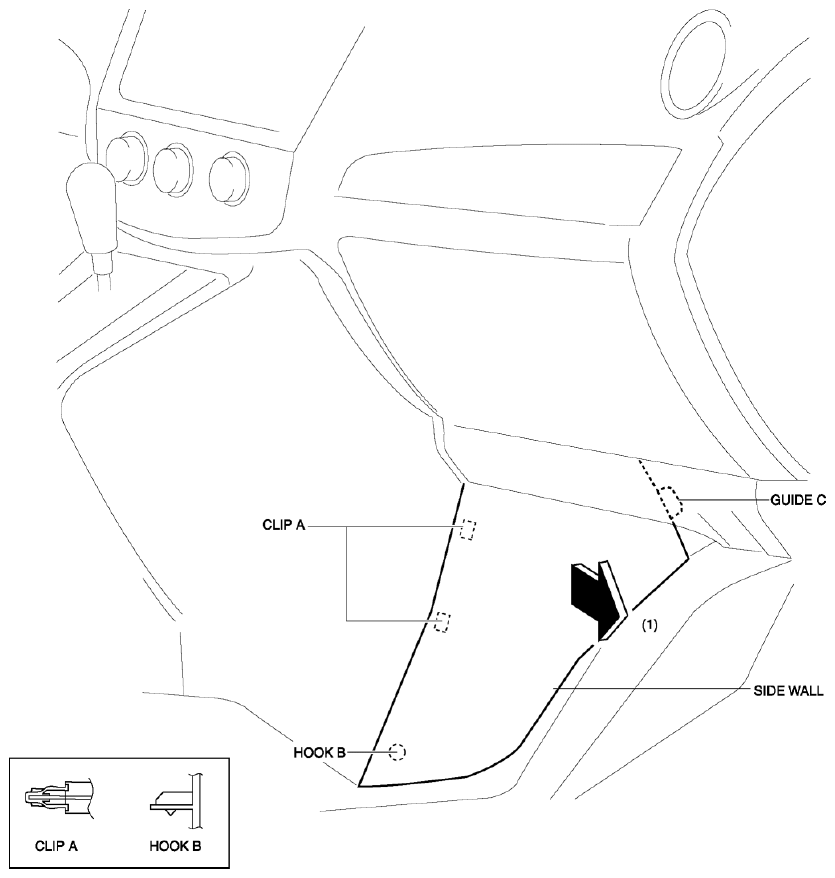

    Fig 1: Pulling Out Side Wall (Passenger-Side)
    G08153207
    CAUTION:
    • When remove the clips A and hook B, be careful not to damage the guide C.
  2. Pull the side wall in the direction of the arrow (2) shown in the figure, then remove it while detaching the guide C.

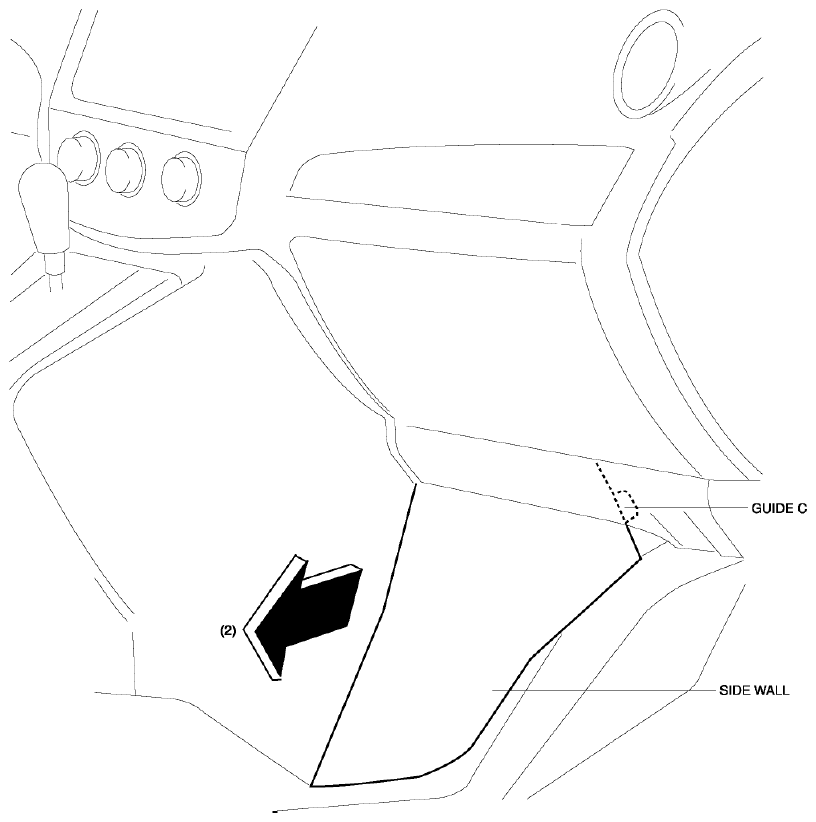

    Fig 2: Pulling Side Wall
    G08153208
  3. Install in the reverse order of removal.
