Side Wall Removal/Installation: Driver-side

  1. Remove the fastener A.

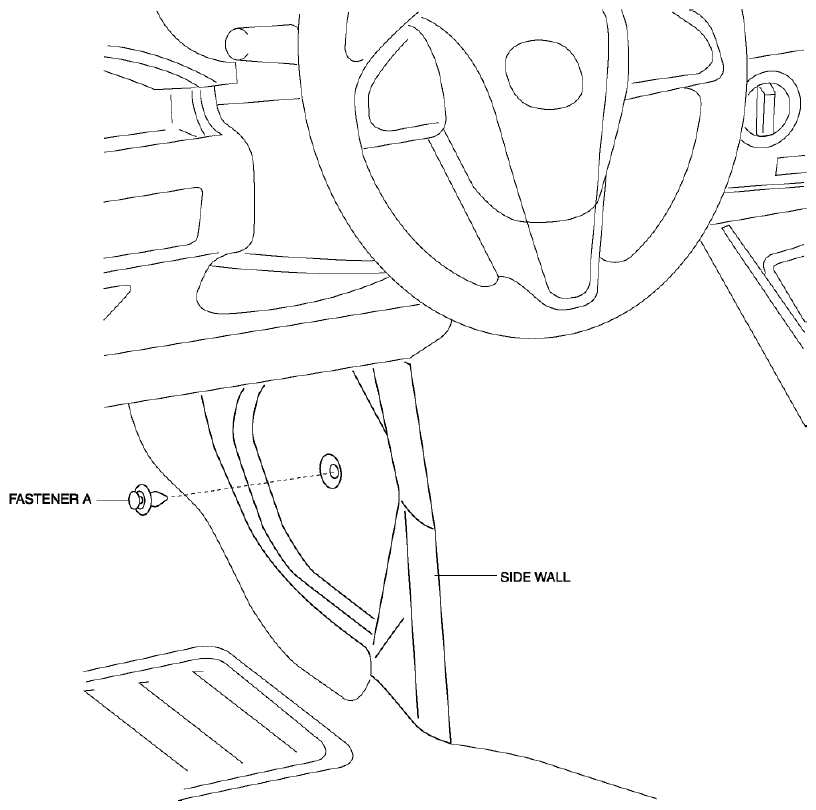

    Fig 1: Identifying Side Wall And Fastener A (Driver-Side)
    G08153204
  2. Pull out the side wall in the direction shown in the direction of the arrow (1) shown in the figure, then remove the clips B and hook C.

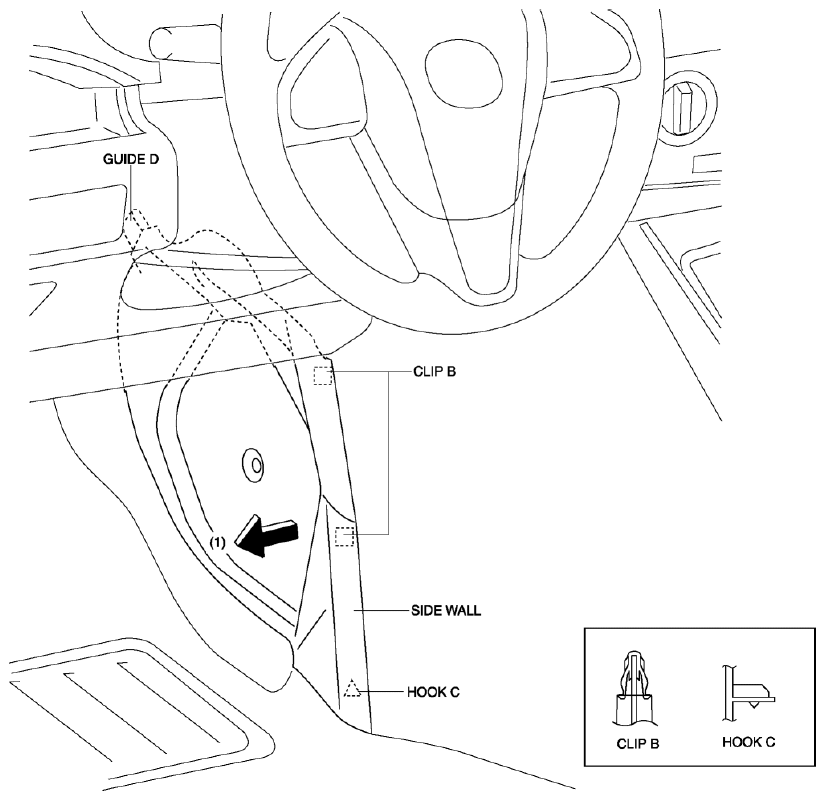

    Fig 2: Pulling Out Side Wall (Driver-Side)
    G08153205
    CAUTION:
    • When remove the clips B and hook C, be careful not to damage the guide D.
  3. Pull the side wall in the direction of the arrow (2) shown in the figure, then remove it while detaching the guide D.

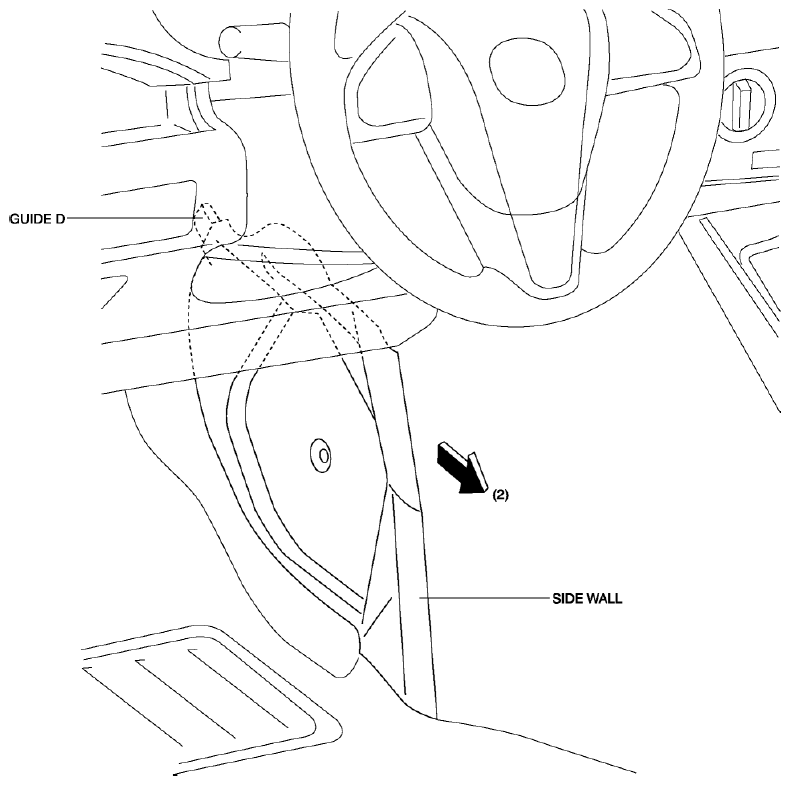

    Fig 3: Pulling Side Wall
    G08153206
  4. Install in the reverse order of removal.
