Shift Panel Removal/Installation: MTX

Shift lever to neutral position.
Remove the following parts:
1. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
2. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
3. Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)

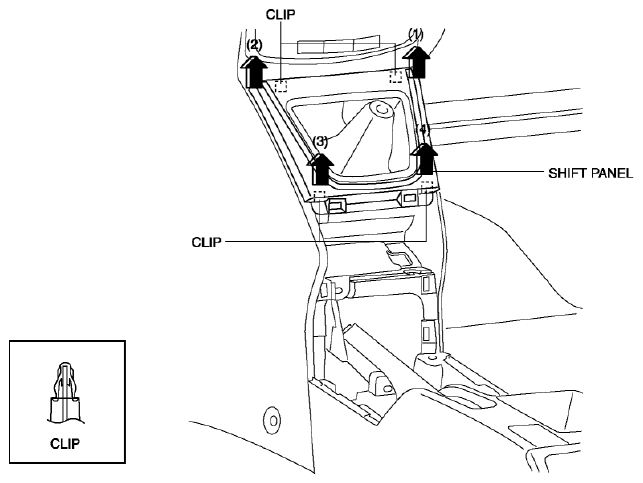

Pull the shift panel in the direction of the arrow (1), (2), (3), (4) while remove the clips.

Fig 1: Removing Shift Panel Clips (MTX)
Remove the shift panel.
Install in the reverse order of removal.
