Rear Package Tray Lid Removal/Installation

  1. Pull in the direction of the arrow (1), (2), (3) shown in the figure and remove the fastener.

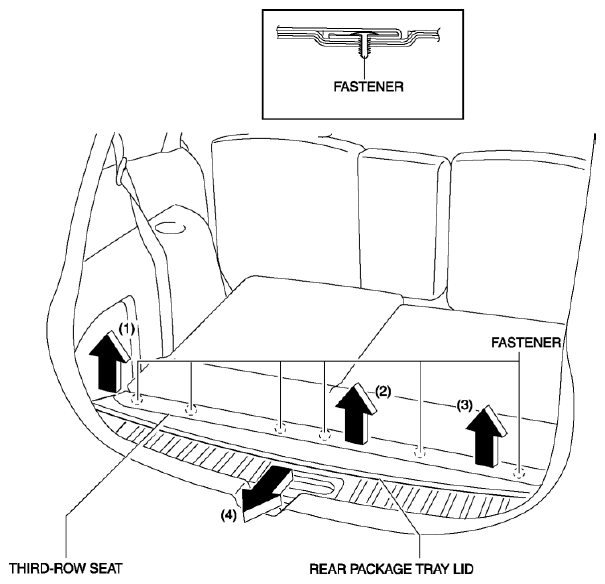

    Fig 1: Removing Rear Package Tray Lid Fastener
    G08153269
  2. Pull the rear package tray lid in the direction of arrow (4) then remove the rear package tray lid.
  3. Install in the reverse order of removal.
