Interior Trim Location Index

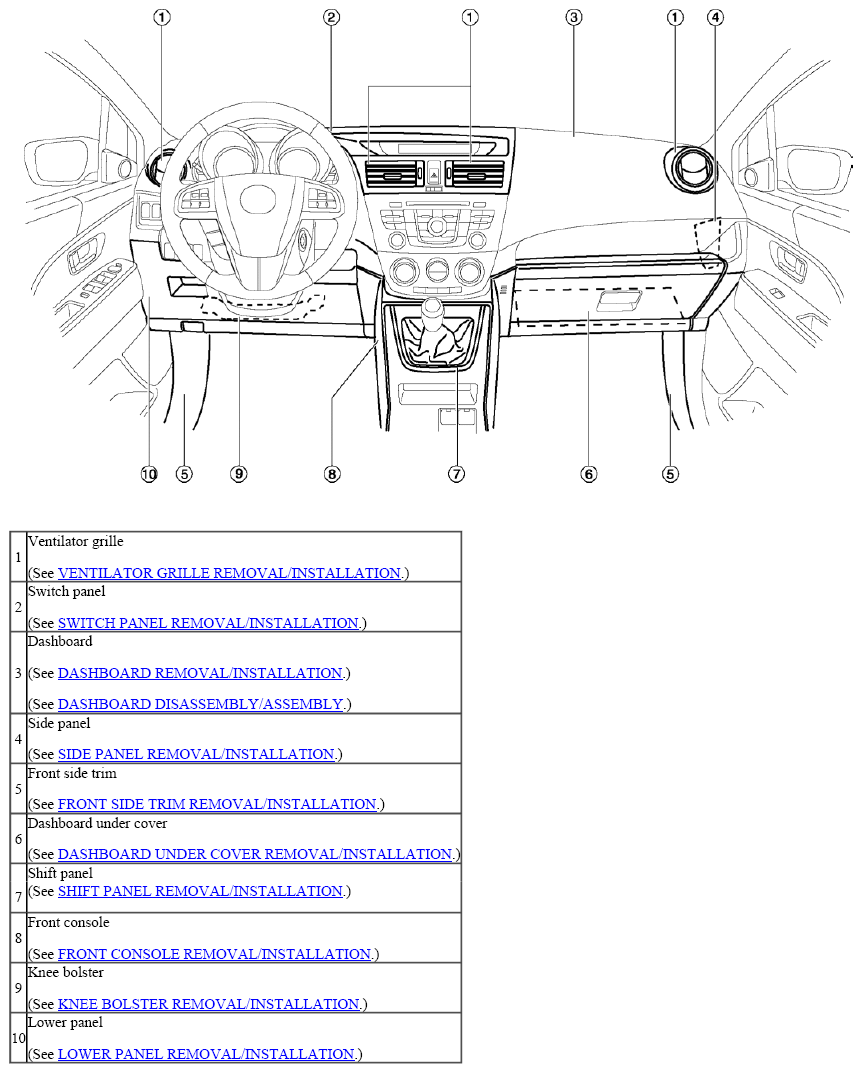

Fig 1: Identifying Interior Trim Related Components (1 Of 3)
G08153181

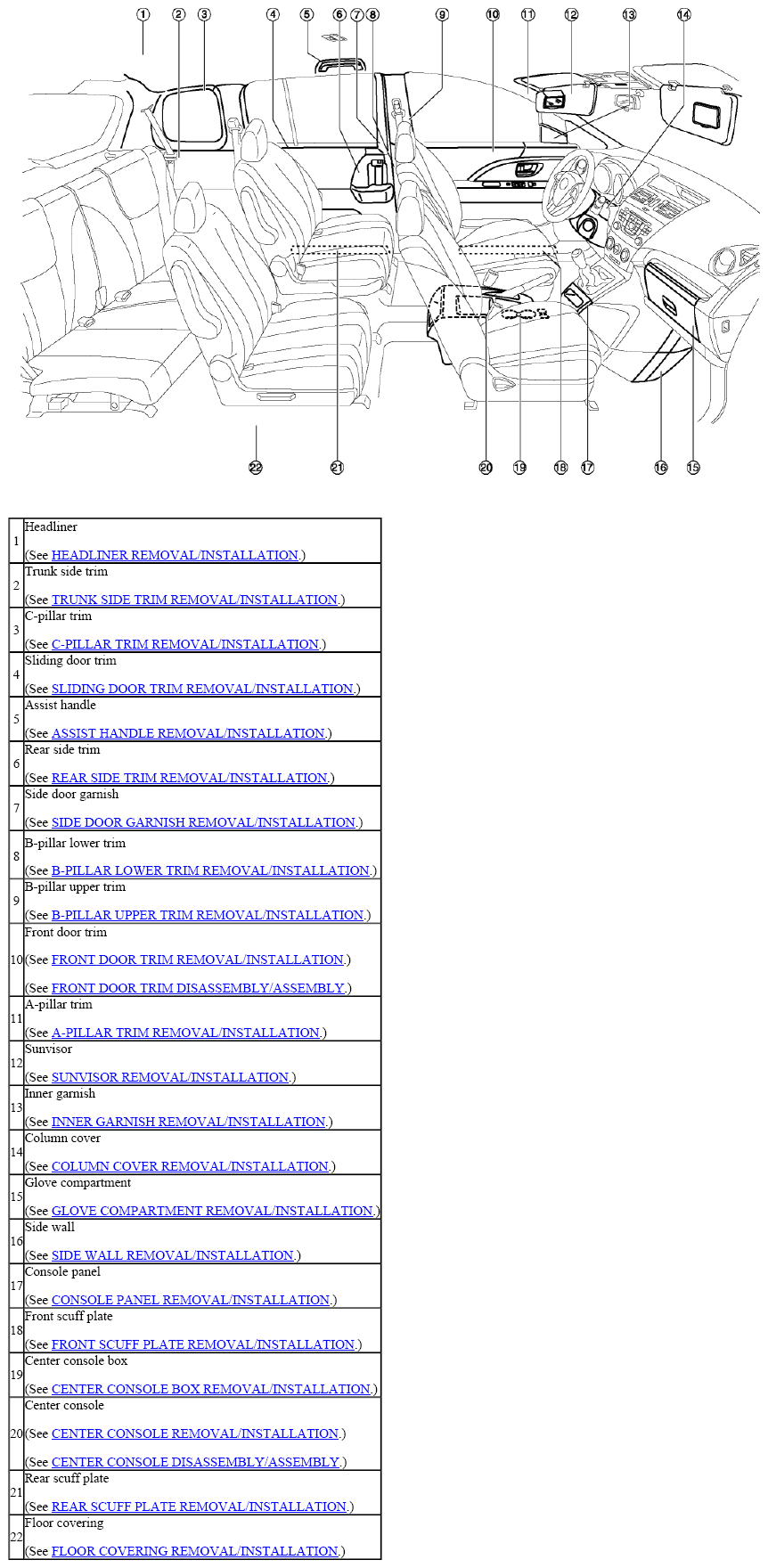

Fig 2: Identifying Interior Trim Related Components (2 Of 3)
G08153182

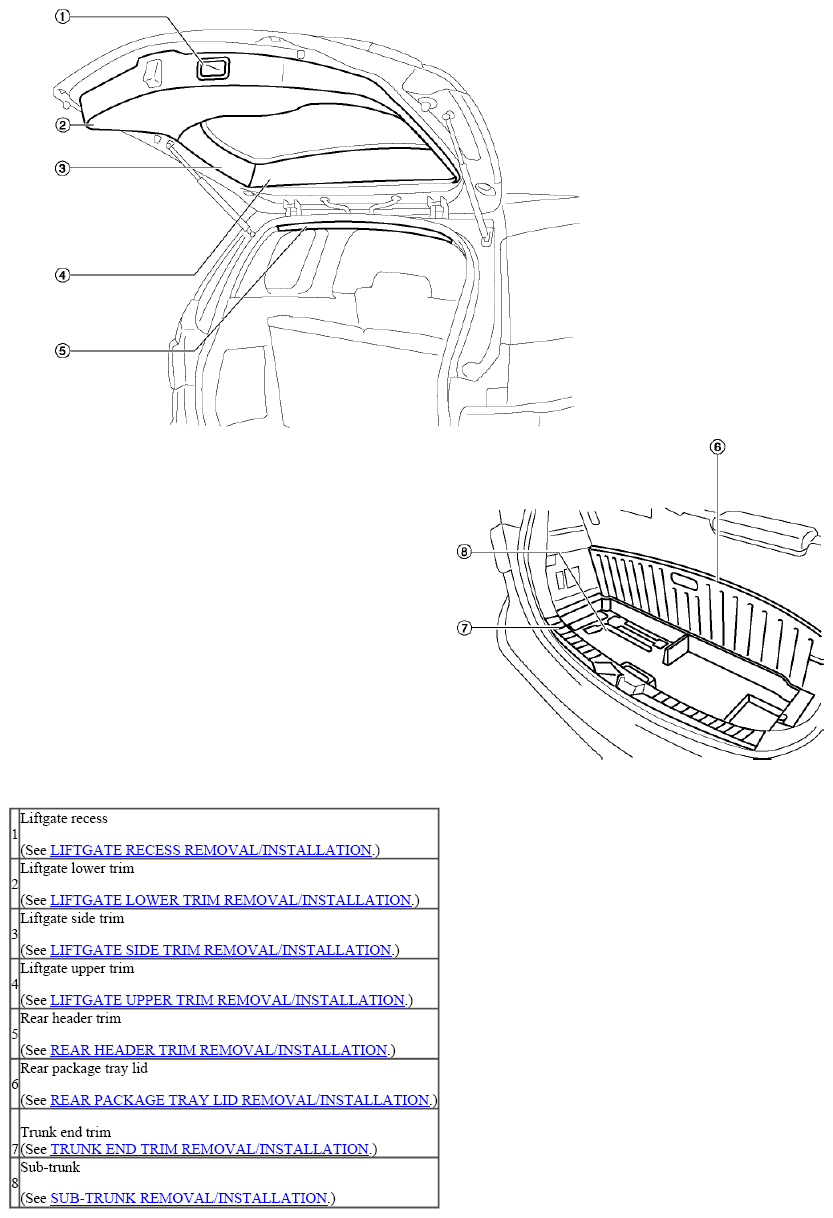

Fig 3: Identifying Interior Trim Related Components (3 Of 3)
G08153183
