Splash Shield Removal/Installation: Rear

  1. Remove the fastener A, screw B, and bolt C.

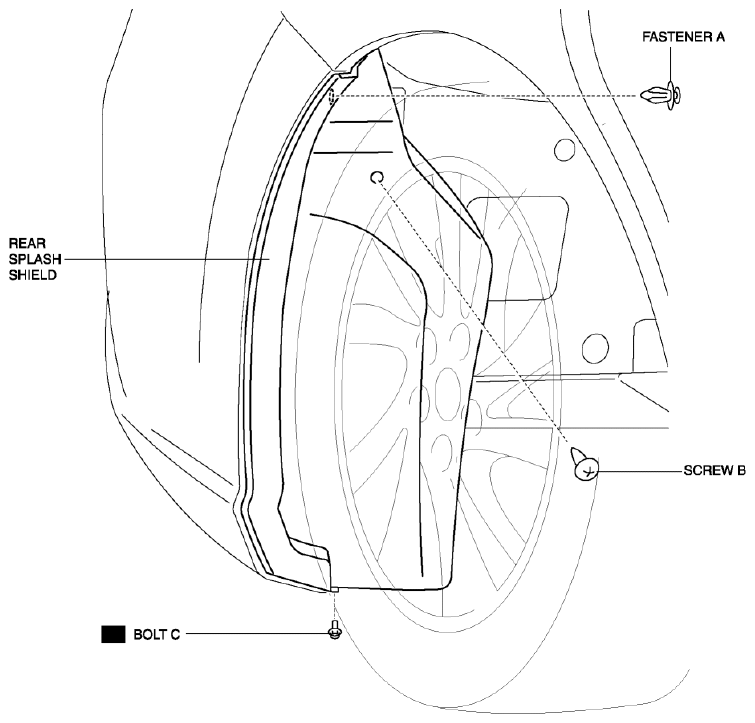

    Fig 1: Identifying Rear Splash Shield, Fastener A, Screw B And Bolt C
    G08153176
  2. Pull the rear splash shield in the direction of the arrow shown in the figure, then remove it while detaching the hook D.

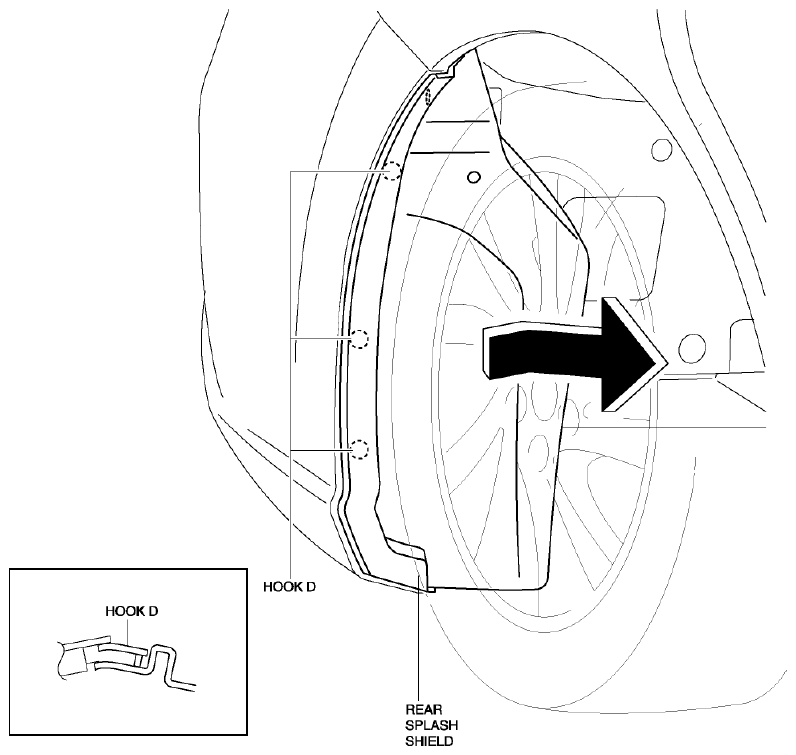

    Fig 2: Pulling Rear Splash Shield
    G08153177
  3. Install in the reverse order of removal.
