Slide Door Garnish Removal/Installation

  1. Remove the screw A.

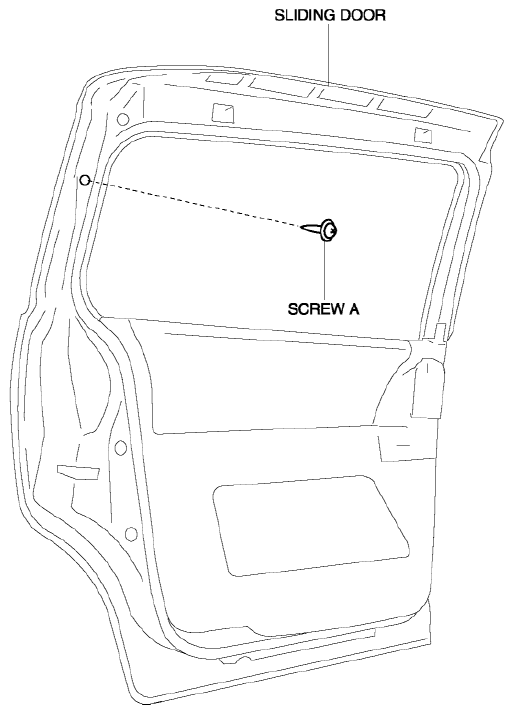

    Fig 1: Identifying Slide Door And Screw A
    G08153170
  2. Pull the slide door garnish area A outward then remove the positioning parts.
    Fig 2: Pulling Slide Door Garnish
    G08153171
  3. Pull the slide door garnish in the direction of the arrow shown in the figure, then remove it while detaching the clip B from the body.
  4. Remove the slide door garnish.
  5. After removing the slide door garnish, remove clips B from the body using the fastener remover.
  6. Install in the reverse order of removal.
