Mudguard Removal/Installation: Rear

  1. Remove the rear splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  2. Remove the fastener A.

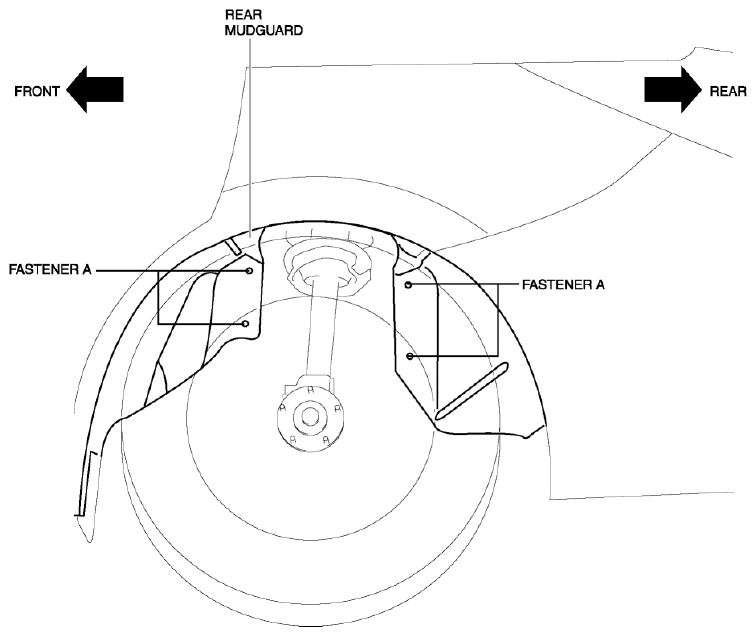

    Fig 1: Identifying Rear Mudguard And Fasteners A
    G08153161
  3. Remove the cap nut B.

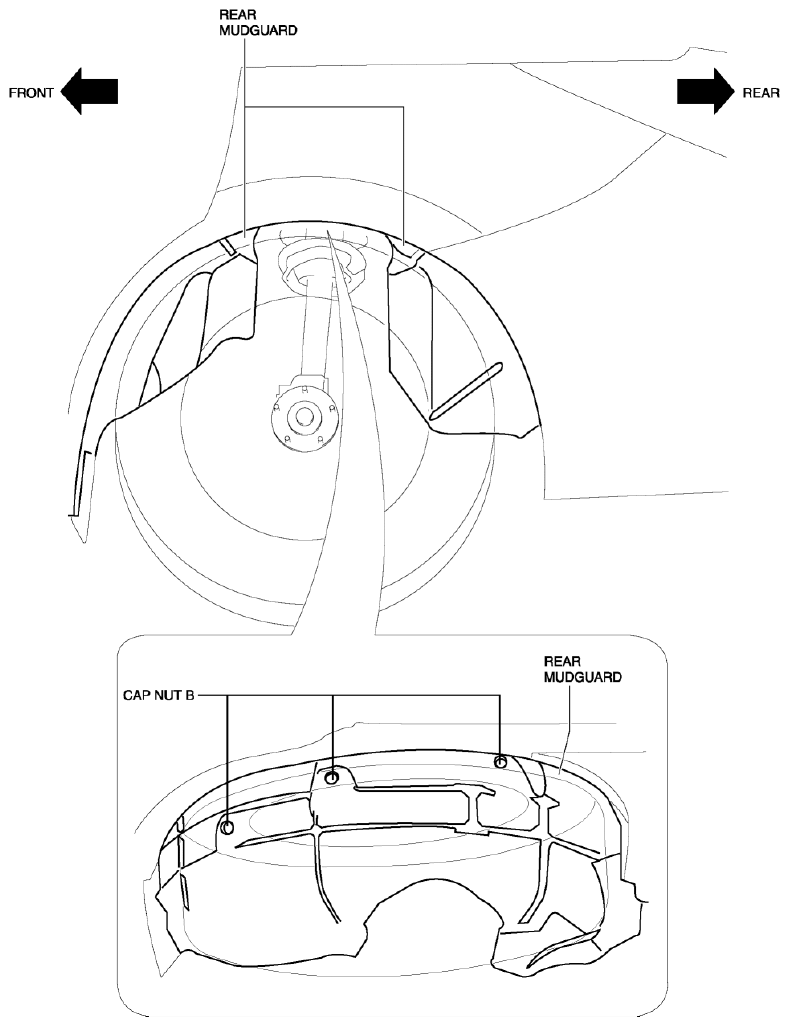

    Fig 2: Identifying Rear Mudguard And Cap Nut B
    G08153162
  4. Pull the mudguard in the direction of the arrow shown in the figure and remove it.

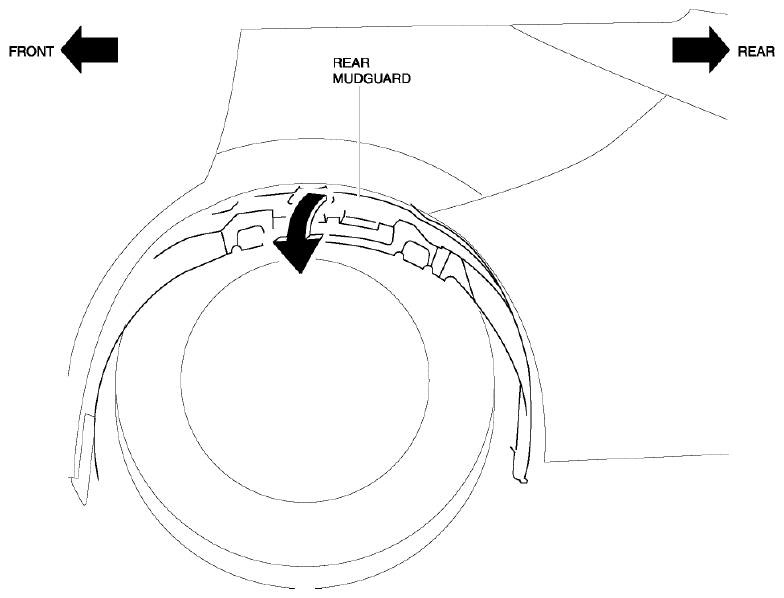

    Fig 3: Pulling Rear Mudguard
    G08153163
  5. Install in the reverse order of removal.
