Mudguard Removal/Installation: Front

  1. Remove the screw A.

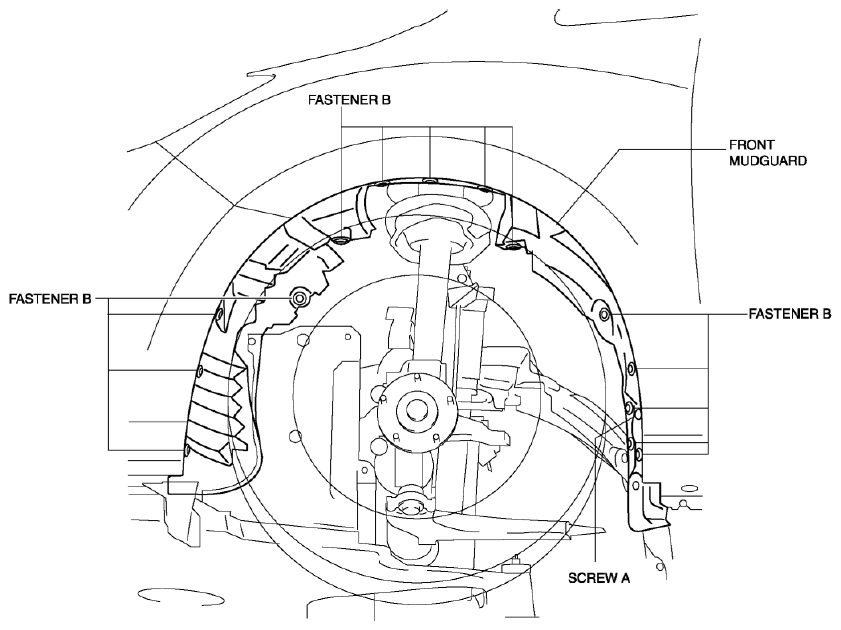

    Fig 1: Identifying Front Mudguard Screw A And Fasteners B
    G08153159
  2. Remove the fastener B.
  3. Pull the front mudguard in the direction of the arrow shown in the figure and remove it.

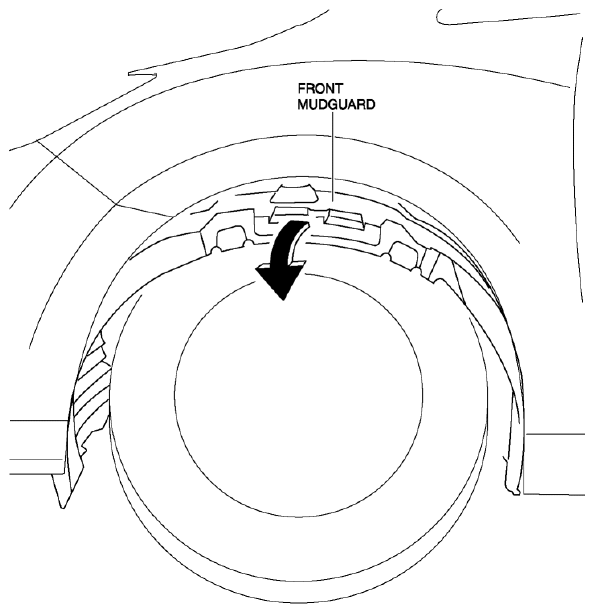

    Fig 2: Pulling Front Mudguard
    G08153160
  4. Install in the reverse order of removal.
