Front Flap Removal/Installation

  1. Remove the screw A and fasteners B.

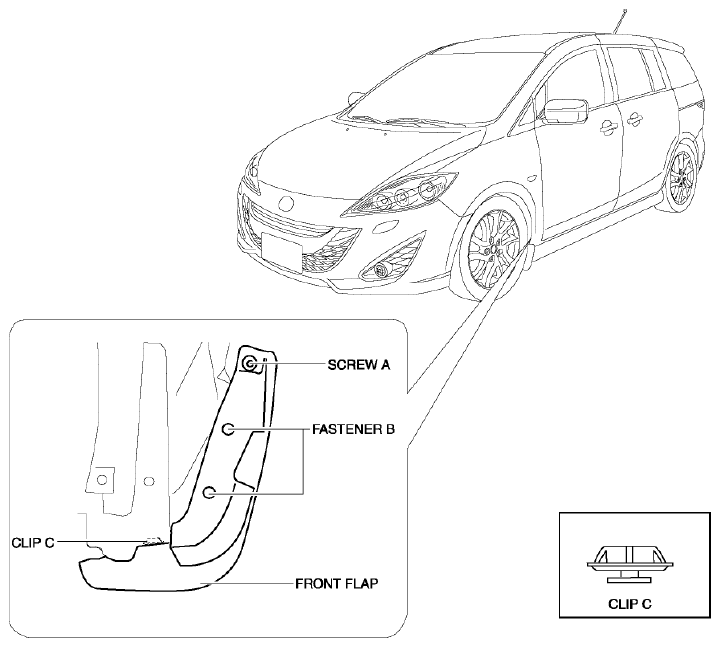

    Fig 1: Identifying Front Flap, Clip C, Screw A And Fasteners B
    G08153144
  2. Detach the clip C, then remove the front flap.
  3. Install in the reverse order of removal.
