Stopper Rubber Removal Note

  1. Pull the stopper rubber outward and unhook it from the upper rail.

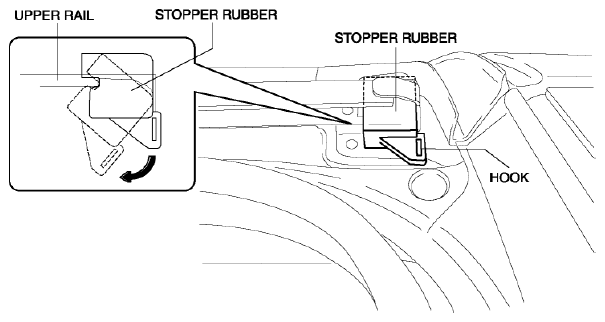

    Fig 1: Pulling Stopper Rubber Outward
    G08152766
  2. Rotate the stopper rubber in the direction of the arrow and remove it from the upper rail.
