Front Door Removal/Installation: Notes

WARNING:
  • Removing the front door without supporting it could cause the front door to fall and cause serious injury. Always perform the procedure with at least another person to prevent the front door from falling.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

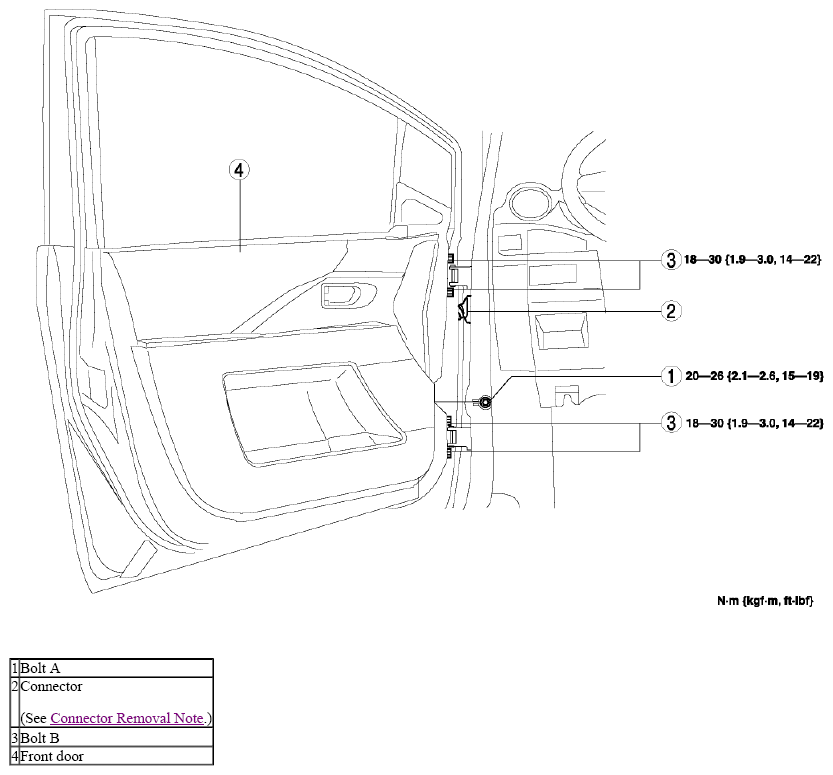

    Fig 1: Front Door Attachment Components And Removal Order With Torque Specifications
    G08152755
  3. Install in the reverse order of removal.
  4. Adjust the front door. (See DOOR ADJUSTMENT .)
